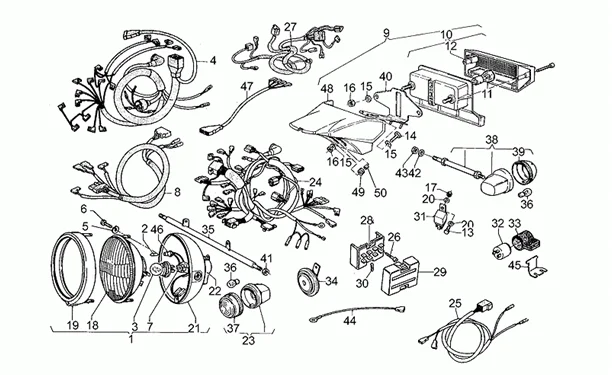

Chassis : 33.04 PHARES-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/526/V35_II_350_1981-1985_33.04.PNG)
1 |
GU28740533 - FEU AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
2 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
|
3 |
GU93450231 - LAMPE (OU AMPOULE) 12V 45/40W More informationQuantity required : 1 |
||||||
|
8 |
GU19726380 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
11 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 2 |
||||||
|
13 |
GU98054212 - VIS More informationQuantity required : 2 |
||||||
|
14 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
16 |
GU92602206 - ECROU More informationQuantity required : 4 |
||||||
|
17 |
GU92602205 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
GU19740455 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
19 |
GU19740454 - CADRE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
20 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 4 |
||||||
|
22 |
GU19740404 - COUVERCLE More informationQuantity required : 1 |
||||||
|
24 |
GU19725820 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
26 |
GU98622220 - VIS More informationQuantity required : 2 |
||||||
|
27 |
GU19725820 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
30 |
GU17742550 - FUSIBLE 16A More informationQuantity required : 4 |
||||||
|
31 |
GU19732500 - RELAIS DEMARRAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
32 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
33 |
GU17751200 - BLOC More informationQuantity required : 1 |
||||||
|
34 |
GU61743700 - AVERTISSEUR ACOUST More informationQuantity required : 1 |
||||||
|
41 |
GU19742050 - ECROU More informationQuantity required : 2 |
||||||
|
42 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
43 |
GU92602411 - ECROU More informationQuantity required : 2 |
||||||
|
45 |
GU19750435 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
46 |
GU17740405 - PORTE AMPOULE More informationQuantity required : 1 |
||||||
|
47 |
GU19747105 - RALLONGE GR.CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
49 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
50 |
GU91180607 - ENTRETOISE More informationQuantity required : 4 |
