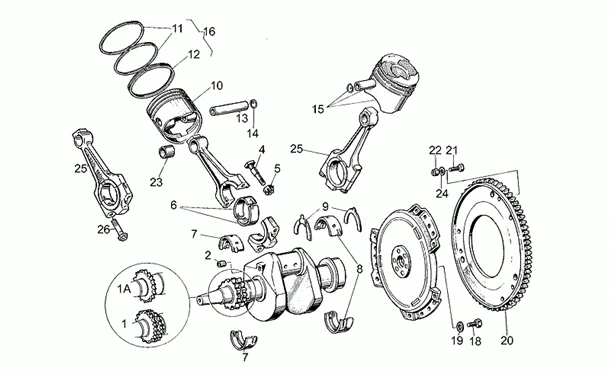

Moteur : 34.14 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/526/V35_II_350_1981-1985_34.14.PNG)
1 |
GU19064120 - VILEBREQUIN More informationQuantity required : 1 |
||||||
|
1 |
GU19064121 - VILEBREQUIN More informationQuantity required : 1 |
||||||
|
2 |
GU19065400 - BOUCHON More informationQuantity required : 1 |
||||||
|
4 |
GU19062220 - VIS More informationQuantity required : 4 |
||||||
|
6 |
GU19062022 - DEMI-COUSSINET More informationQuantity required : 4 |
||||||
|
7 |
GU19065623 - DEMI-ROULLEMENT More informationQuantity required : 2 |
||||||
|
8 |
GU19066522 - DEMI-ROULLEMENT More informationQuantity required : 2 |
||||||
|
9 |
GU31066480 - DEMI RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
GU19060421 - PISTON More informationQuantity required : 2 |
||||||
|
11 |
GU19060700 - SEGMENT DE PISTON More informationQuantity required : 4 |
||||||
|
12 |
GU19061000 - SEGMENT RACLEUR More informationQuantity required : 2 |
||||||
|
14 |
GU19061320 - JONC D ARRET More informationQuantity required : 4 |
||||||
|
16 |
GU19060600 - ENSEMBLE DE SEGMENTS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/0/8/img/129508.jpg)
18 |
GU19067700 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
19 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 6 |
||||||
|
20 |
GU19067900 - COURONNE DENTEE More informationQuantity required : 1 |
||||||
|
21 |
GU98054318 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
21 |
GU98084316 - VIS M6X16 More informationQuantity required : 6 |
||||||
|
22 |
GU92630106 - ECROU M6X1 More informationQuantity required : 6 |
||||||
|
23 |
GU19061821 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
24 |
AP8152105 - RONDELLE More informationQuantity required : 6 |
||||||
|
25 |
GU19061521 - BIELLE More informationQuantity required : 2 |
||||||
|
26 |
GU19062221 - VIS More informationQuantity required : 4 |
