Vehicle Exploded View - MOTO-GUZZI V35 350 II 350 1981-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

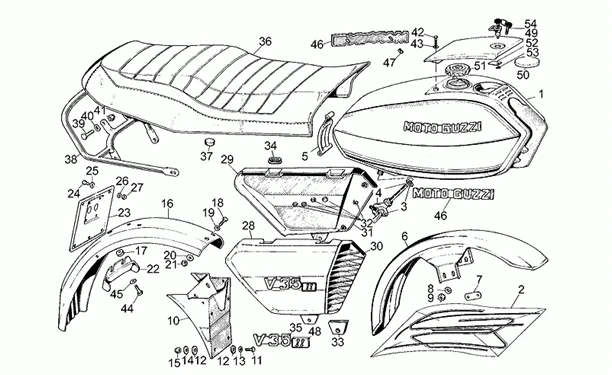

Chassis : 33.02 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/526/V35_II_350_1981-1985_33.02.PNG)
3 |
GU65105400 - ROBINET ESS.D. More informationQuantity required : 1 |
||||||
|
4 |
GU65105401 - ROBINET ESS.G. More informationQuantity required : 1 |
||||||
|
5 |
GU19102750 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
8 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
9 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
11 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
12 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 8 |
||||||
|
13 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
14 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
|
15 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
17 |
GU91551102 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
18 |
GU98054312 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
19 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
21 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
23 |
GU01474630 - PORTATARGA More informationQuantity required : 1 |
||||||
|
25 |
GU95000204 - RONDELLE More informationQuantity required : 4 |
||||||
|
26 |
GU95129080 - RONDELLE More informationQuantity required : 4 |
||||||
|
30 |
GU19478150 - GRILLE DROITE More informationQuantity required : 1 |
||||||
|
31 |
GU19478250 - GRILLE GAUCHE More informationQuantity required : 1 |
||||||
|
32 |
GU39922200 - CLIPS More informationQuantity required : 14 |
||||||
|
33 |
GU19478550 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
34 |
GU19478750 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
37 |
GU19461650 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
39 |
GU98054420 - VIS M8X20 More informationQuantity required : 2 |
||||||
|
40 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
41 |
GU92630108 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.JPG)
43 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
44 |
GU98084314 - VIS M6X14 More informationQuantity required : 2 |
||||||
|
45 |
GU95100123 - RONDELLE More informationQuantity required : 2 |
||||||
|
47 |
GU14105100 - AGRAFE More informationQuantity required : 4 |
||||||
|
50 |
GU19104336 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
51 |
GU28103946 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
52 |
GU18105001 - LOQUETEAU More informationQuantity required : 1 |
||||||
|
53 |
GU19104950 - COLLIER More informationQuantity required : 1 |
