Vehicle Exploded View - APRILIA TUAREG 50 Rally 50 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

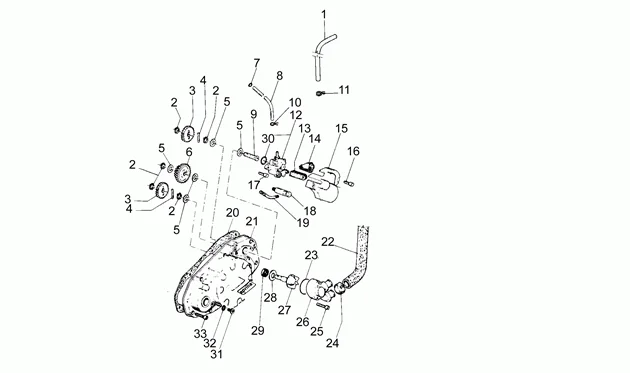

Moteur : 3 HUILE MIX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/583/Tuareg_Rally_50_1990-1992_3.PNG)
1 |
DURITE ENTRE HUILE *435 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/0/9/img/61009.jpg)
2 |
AP8501467 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 5 |
||||||
|
3 |
AP8508872 - PIGNON DE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/6/img/61066.jpg)
4 |
AP8508669 - ROULEAU More informationQuantity required : 2 |
||||||
|
5 |
RONDELLE ACIER BLEUE |
||||||
|
6 |
PIGNON DOUBLE INTERM. |
||||||
|
7 |
Joint torique |
||||||
|
8 |
AP8206631 - TUYAU More informationQuantity required : 1 |
||||||
|
9 |
AXE POMPE HUILE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/6/5/img/55965.jpg)
10 |
AP8206711 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
COLLIER (PL) |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/7/img/61067.jpg)
12 |
OIL PUMP "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, MX, RS, CLASSIC, EUROPA, PEGASO, AF1 1991>2002 -AP8508863- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/4/img/61064.jpg)
13 |
CABLE ADJUSTER RUBBER FOR OIL PUMP "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, RS, PEGASO, EUROPA, CLASSIC -AP8508667- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/5/img/61065.jpg)
14 |
AP8508668 - CAOUTCHOUC TUYAUX HUILE More informationQuantity required : 1 |
||||||
|
15 |
COUVERCLE COUP. EMBRAYAG |
||||||
|
16 |
VIS T.C.C.E. M5X25 |
||||||
|
17 |
VIS T.C.B. M5X16 |
||||||
|
18 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/8/1/img/61081.jpg)
19 |
OIL PUMP CABLE GUIDE "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, MX, PEGASO, EUROPA, CLASSIC, AF1 -AP8509334- More informationQuantity required : 1 |
||||||
|
20 |
AP8508558 - JOINT COUVERCLE EMBRAYAG More informationQuantity required : 1 |
||||||
|
21 |
CARTER EMBRAYAGE |
||||||
|
22 |
DURITE EAU POMPE-CYL. |
||||||
|
23 |
JOINT TORIQUE .34,65X1,7 |
||||||
|
24 |
COLLIER CLIC |
||||||
|
25 |
VIS TCCE M5X30 |
||||||
|
26 |
CORP POMPE A EAU NOIR |
||||||
|
27 |
AP8508873 - AXE POMPE EAU C/GIRANT More informationQuantity required : 1 |
||||||
|
28 |
RONDELLE =8502487 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/7/1/img/61071.jpg)
29 |
SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50/50 A BOITE 1995>2000 -AP8509130- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/4/img/61044.jpg)
30 |
AP8502665 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
31 |
Vis + queue de carénage |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/9/img/61049.jpg)
32 |
AP8502758 - JOINT VIS HUILE More informationQuantity required : 1 |
||||||
|
33 |
AP8502564 - VIS More informationQuantity required : 8 |
