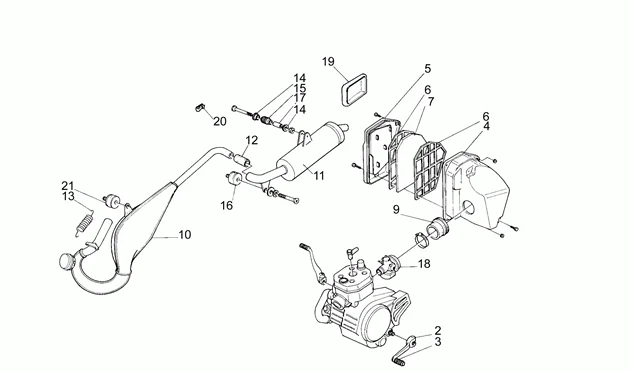

Chassis : 10 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/583/Tuareg_Rally_50_1990-1992_10.PNG)
2 |
AP8232662 - LEVIER BO?TE DE VITESSES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
3 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912 More informationQuantity required : 1 |
||||||
|
4 |
BASE CAISSE FILT=8230092 |
||||||
|
5 |
COUVERCLE BOITE A FILTRE |
||||||
|
6 |
SUPPORT FILTRE |
||||||
|
7 |
FILTRE A AIR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/6/img/56836.jpg)
9 |
JOINING SLEEVE- FROM CARB TO AIRBOX "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>1998 -AP8220180- More informationQuantity required : 1 |
||||||
|
10 |
POT ECHAPPEMENT PEINT |
||||||
|
11 |
SILENCIEUX PEINT AL (PL) |
||||||
|
12 |
AP8220003 - MANCHON POT/SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/4/img/45094.jpg)
13 |
AP8101259 - RESS.HEL.CYL.TRACT. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/6/img/45096.jpg)
14 |
AP8101284 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
AP8101285 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
16 |
Silent block |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
17 |
AP8121058 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
18 |
CARBURATEUR SHA 14-12 M |
||||||
|
19 |
FERMETURE BOITE FILTRE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 5 |
||||||
|
21 |
AP8201121 - SILENTBLOC More informationQuantity required : 1 |
