Vehicle Exploded View - APRILIA TUAREG 50 Rally 50 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

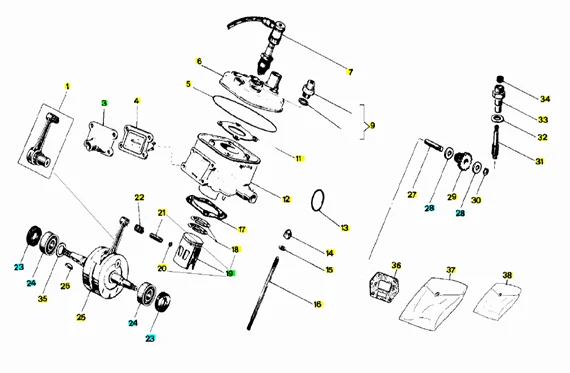

Moteur : 1 ARBRE MOTEUR - CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/583/Tuareg_Rally_50_1990-1992_1.PNG)
1 |
EMBIELLAGE COMPLET |
||||||
|
3 |
PIPE ADMISSION |
||||||
|
3 |
PIPE ADMISSION |
||||||
|
4 |
AP8206009 - GRUPPO LAMELLARE More informationQuantity required : 1 |
||||||
|
5 |
AP8206021 - JOINT CULASSE More informationQuantity required : 1 |
||||||
|
6 |
CULASSE |
||||||
|
7 |
Pipe bougie |
||||||
|
9 |
Thermistor |
||||||
|
11 |
AP8508561 - JOINT CULASSE More informationQuantity required : 1 |
||||||
|
12 |
CYLINDRE PISTON COMPLET |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/5/img/61045.jpg)
13 |
AP8502668 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/2/7/img/55827.jpg)
14 |
AP8206427 - ECROU AUTOBL.BORGNE More informationQuantity required : 4 |
||||||
|
15 |
RONDELLE |
||||||
|
16 |
AP8508553 - VIS SANS T?TE More informationQuantity required : 4 |
||||||
|
17 |
AP8502675 - JOINT D'EMBASE More informationQuantity required : 1 |
||||||
|
18 |
JEU SEGMENTS |
||||||
|
19 |
PISTON CPL SEL."A" |
||||||
|
19 |
PISTON CPL SEL."B" |
||||||
|
19 |
Piston cpl. |
||||||
|
20 |
AP8206019 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
21 |
GOUPILLE |
||||||
|
22 |
AP8509769 - CAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/7/6/img/61076.jpg)
23 |
SEAL RING GASKET- FOR CRANKSHAFT(IGNITION SIDE) "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX, MX, PEGASO, EUROPA, AF1, MX, CLASSIC -AP8509182- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/8/6/img/61086.jpg)
24 |
BEARING FOR BALANCE SHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX, CLASSIC, TUONO 1993>2005 -AP8510039- More informationQuantity required : 2 |
||||||
|
25 |
ARBRE MOTEUR =8510036 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/5/6/img/61056.jpg)
26 |
WOODRUFF KEY "PIAGGIO GENUINE PART" APRILIA 50 CLASSIC, AF1, EUROPA, PEGASO, RS -AP8508551 More informationQuantity required : 1 |
||||||
|
27 |
AXE PIGNON CONDUTT. |
||||||
|
28 |
RONDELLE ACIER BLEUE |
||||||
|
29 |
PIGNON CONDUCTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/0/9/img/61009.jpg)
30 |
AP8501467 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 1 |
||||||
|
31 |
PIGNON CONDUIT |
||||||
|
32 |
AP8502757 - JOINT VIS More informationQuantity required : 1 |
||||||
|
33 |
|
||||||
|
34 |
AP0930500 - JOINT SPI More informationQuantity required : 1 |
||||||
|
35 |
RONDELLE ACIER |
||||||
|
36 |
JOINT CLAPET |
||||||
|
37 |
AP8206010 - POCHETTE JOINT MOTEUR More informationQuantity required : 1 |
||||||
|
38 |
KIT JOINT SPY RV6 (6 PE |
