Vehicle Exploded View - APRILIA TUAREG 50 Rally 50 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

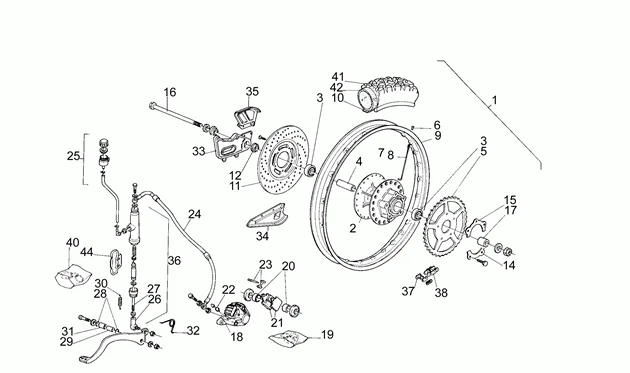

Chassis : 14 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/583/Tuareg_Rally_50_1990-1992_14.PNG)
3 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50-125 APRILIA -AP8225123- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/1/4/5/img/56145.jpg)
6 |
AP8208410 - NIPPLES More informationQuantity required : 36 |
||||||
|
9 |
AP8208352 - JANTE AV INOX POLI More informationQuantity required : 1 |
||||||
|
10 |
AP8209032 - FLAP POUR ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/3/img/46723.jpg)
12 |
AP8121088 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
AP8225145 - PLAQUE DE SECURITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/7/6/img/56376.jpg)
18 |
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 50 RX, TUAREG, MX -AP8213081- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/1/img/56381.jpg)
19 |
MAINTENANCE KIT-FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, RS, TUONO -AP8213102- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/8/img/72198.JPG)
21 |
AP8213104 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
22 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER APRILIA -AP8213108- More informationQuantity required : 1 |
||||||
|
23 |
AP8213415 - GOUJON+RESSORT PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/6/5/img/56465.jpg)
25 |
TANK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART"APRILIA 50-125 RS, PEGASO, AF1, TUONO, 50 RALLY, MX, SX, RX -AP8213446- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
26 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/8/img/56998.jpg)
27 |
AP8221074 - POUS M-CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
28 |
AP8220149 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/4/img/56384.jpg)
36 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RALLY, PEGASO, MX, TUONO -AP8213117- More informationQuantity required : 1 |
||||||
|
37 |
AP8207019 - MAILLON DE JONCTION More informationQuantity required : 1 |
||||||
|
38 |
AP8207017 - CHA?NE+MAIL.JONCTION More informationQuantity required : 1 |
||||||
|
44 |
AP8230575 - PROTECTION POMPE FREIN; More informationQuantity required : 1 |
