Vehicle Exploded View - MOTO-GUZZI STRADA 1000 1993-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

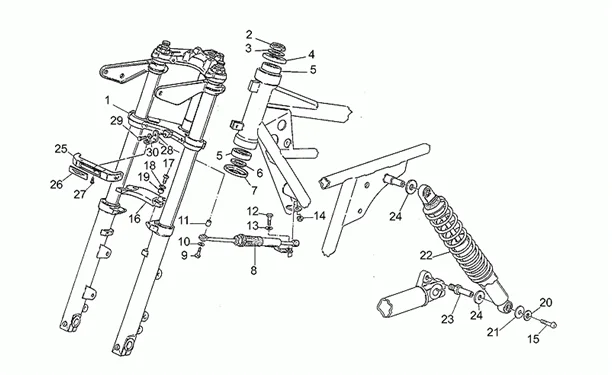

Chassis : 33.24 SUSPENSION AVANT/ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/521/Strada_1000_1993-1994_33.24.PNG)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/3/6/img/129436.jpg)
2 |
NUT - FOR UPPER FORK PLATE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, 1000 LE-MANS, GT, CALIFORNIA -GU18513460- More informationQuantity required : 1 |
||||||
|
3 |
GU18513560 - RONDELLE BOUCHON FOURREAU More informationQuantity required : 1 |
||||||
|
4 |
GU14494600 - COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/2/img/108532.jpg)
5 |
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI BREVIA, BELLAGIO, CALIFORNIA -GU92249225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/0/img/129260.jpg)
6 |
GU14516700 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/1/img/129261.jpg)
7 |
STEERING DUST COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU14517000 More informationQuantity required : 1 |
||||||
|
8 |
GU03530270 - AMORTISSEUR DE DIRECTION More informationQuantity required : 1 |
||||||
|
9 |
VIS |
||||||
|
10 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 1 |
||||||
|
11 |
GU91180605 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
GU98054320 - VIS M6X20 More informationQuantity required : 1 |
||||||
|
13 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
15 |
GU98230816 - VIS More informationQuantity required : 4 |
||||||
|
16 |
Plaque de stabilisation |
||||||
|
17 |
GU98230816 - VIS More informationQuantity required : 4 |
||||||
|
18 |
GU90706092 - JOINT TORIQUE More informationQuantity required : 8 |
||||||
|
19 |
GU29436450 - DOUILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
20 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
21 |
GU95100239 - RONDELLE More informationQuantity required : 4 |
||||||
|
22 |
|
||||||
|
23 |
Pivot |
||||||
|
24 |
GU95100535 - RONDELLE More informationQuantity required : 4 |
||||||
|
25 |
|
||||||
|
26 |
Plaquette marque adhésive |
||||||
|
27 |
GU28576047 - VIS More informationQuantity required : 1 |
||||||
|
28 |
GU29578800 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
29 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
||||||
|
30 |
GU95001206 - RONDELLE More informationQuantity required : 1 |
