Vehicle Exploded View - MOTO-GUZZI STRADA 1000 1993-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

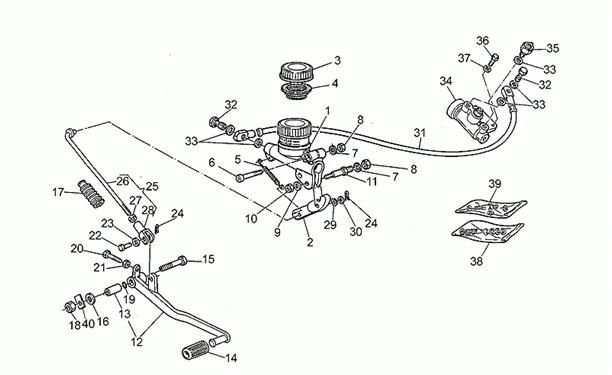

Chassis : 33.19 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/521/Strada_1000_1993-1994_33.19.PNG)
4 |
GU14661300 - MEGAPHONE More informationQuantity required : 1 |
||||||
|
5 |
GU17667651 - RESSORT More informationQuantity required : 1 |
||||||
|
6 |
GU98620440 - VIS M8X40 More informationQuantity required : 1 |
||||||
|
7 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
8 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
||||||
|
9 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
GU92630206 - ECROU M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
14 |
GU14251001 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
15 |
GU30252360 - VIS More informationQuantity required : 1 |
||||||
|
16 |
GU95100409 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
GU17093850 - SOUFFLET More informationQuantity required : 1 |
||||||
|
18 |
GU92701120 - ECROU More informationQuantity required : 1 |
||||||
|
19 |
GU90706108 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
20 |
GU98054320 - VIS M6X20 More informationQuantity required : 1 |
||||||
|
21 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
22 |
GU95770265 - GOUPILLE More informationQuantity required : 1 |
||||||
|
23 |
GU95129110 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.JPG)
24 |
GU95500222 - GOUPILLE More informationQuantity required : 2 |
||||||
|
26 |
GU17675150 - TIGE More informationQuantity required : 1 |
||||||
|
28 |
GU95740175 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
29 |
GU95129130 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
30 |
GU95100173 - RONDELLE More informationQuantity required : 1 |
||||||
|
32 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
33 |
GU25656100 - GARNITURE More informationQuantity required : 5 |
||||||
|
35 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI 1980>2000 -GU63657000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
36 |
GU98084316 - VIS M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
37 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 2 |
||||||
|
38 |
MAINTENANCE KIT- FOR BRAKE CALIPER "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 T3, 1000 LE MANS, STRADA, V50, V65 -GU17659350- More informationQuantity required : 1 |
||||||
|
40 |
GU95184014 - PLAQUETTE D ARRET More informationQuantity required : 1 |
