Vehicle Exploded View - MOTO-GUZZI STRADA 1000 1993-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

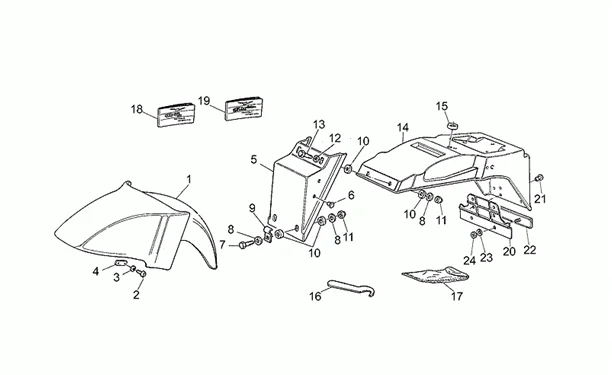

Chassis : 33.17 GARDE-BOUE AV-QUEUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/521/Strada_1000_1993-1994_33.17.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
GARDE-BOUE AV. |
||||||
|
1 |
Garde-boue Av. |
||||||
|
1 |
GARDE-BOUE AV. |
||||||
|
2 |
GU98230816 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
3 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
4 |
PLAQUETTE |
||||||
|
5 |
|
||||||
|
6 |
GU93180080 - BOUCHON More informationQuantity required : 3 |
||||||
|
7 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
8 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 6 |
||||||
|
9 |
GU93301313 - GUIDE CABLE More informationQuantity required : 2 |
||||||
|
10 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 8 |
||||||
|
11 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
12 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
13 |
GU98054325 - VIS More informationQuantity required : 2 |
||||||
|
14 |
|
||||||
|
15 |
|
||||||
|
16 |
CLEF |
||||||
|
17 |
TROUSSE OUTILS |
||||||
|
18 |
|
||||||
|
18 |
|
||||||
|
18 |
|
||||||
|
18 |
|
||||||
|
19 |
Manuel d'utilisat.et entretien |
||||||
|
20 |
|
||||||
|
21 |
|
||||||
|
22 |
Catadioptre arrière |
||||||
|
23 |
GU95129080 - RONDELLE More informationQuantity required : 2 |
||||||
|
24 |
GU92602204 - ECROU More informationQuantity required : 2 |
