Vehicle Exploded View - MOTO-GUZZI STRADA 1000 1993-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

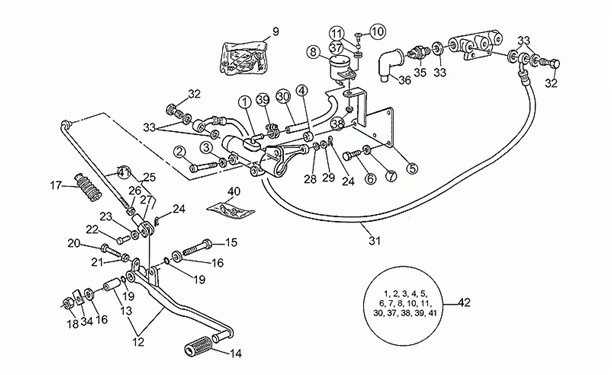

Chassis : 33.11 GROUPE MODIF. POMPE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/521/Strada_1000_1993-1994_33.11.PNG)
1 |
GU31666990 - MAIT.CYL.FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
3 |
AP8152105 - RONDELLE More informationQuantity required : 2 |
||||||
|
4 |
GU91180718 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
6 |
GU98054416 - VIS M8X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
7 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
8 |
GU30665000 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/1/5/img/130915.jpg)
9 |
BRAKE FLUID TANK COVER - "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 LE-MANS, STRADA, GT, DAYTONA, 1100 SPORT, V11, CALIFORNIA -GU30661100- More informationQuantity required : 1 |
||||||
|
10 |
GU98230616 - VIS More informationQuantity required : 1 |
||||||
|
11 |
GU91180607 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
14 |
GU14251001 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
15 |
GU30252360 - VIS More informationQuantity required : 1 |
||||||
|
16 |
GU95100409 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
GU17093850 - SOUFFLET More informationQuantity required : 1 |
||||||
|
18 |
GU92701120 - ECROU More informationQuantity required : 1 |
||||||
|
19 |
GU90706108 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
20 |
GU98054320 - VIS M6X20 More informationQuantity required : 1 |
||||||
|
21 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
22 |
GU95770265 - GOUPILLE More informationQuantity required : 1 |
||||||
|
23 |
GU95129110 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.JPG)
24 |
GU95500222 - GOUPILLE More informationQuantity required : 2 |
||||||
|
27 |
GU95740175 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
28 |
GU95129130 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
29 |
GU95100173 - RONDELLE More informationQuantity required : 1 |
||||||
|
30 |
GU00823950050 - T GOMMA 5X9 More informationQuantity required : 1 |
||||||
|
31 |
GU28658500 - TUYAU FLEXIBLE More informationQuantity required : 1 |
||||||
|
32 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
33 |
GU25656100 - GARNITURE More informationQuantity required : 5 |
||||||
|
34 |
GU95184014 - PLAQUETTE D ARRET More informationQuantity required : 1 |
||||||
|
35 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI 1980>2000 -GU63657000- More informationQuantity required : 1 |
||||||
|
36 |
GU12735100 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
37 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
38 |
GU92630206 - ECROU M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/1/8/3/img/157183.jpg)
39 |
GU19157800 - COLLIER More informationQuantity required : 2 |
||||||
|
40 |
GU19659500 - GR.REVISION RACCORDDE POMP More informationQuantity required : 1 |
