Vehicle Exploded View - GILERA STALKER 50 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

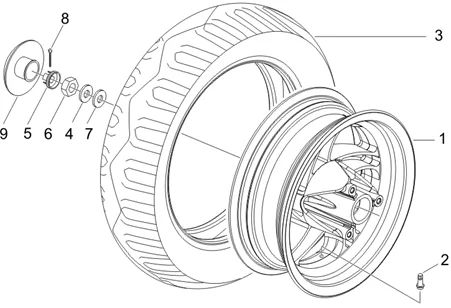

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/150/Stalker_2007-2008_04.12.PNG)
1 |
5644250090 - ROUE AR. More informationQuantity required : 1 |
||||||
|
1 |
56442500B1 - ROUE ARR C13-C19-C29 GRIS (5 BATONS) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
2 |
270991 - VALVE More informationQuantity required : 1 |
||||||
|
3 |
564634 - PNEU SAVA 130/90-10 More informationQuantity required : 1 |
||||||
|
4 |
601769 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.JPG)
5 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 2 |
||||||
|
5 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
6 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/7/img/65757.jpg)
7 |
REAR WHEEL WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -159347- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
8 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 - More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/1/6/img/77316.jpg)
9 |
271143 - PROTECTION More informationQuantity required : 2 |
