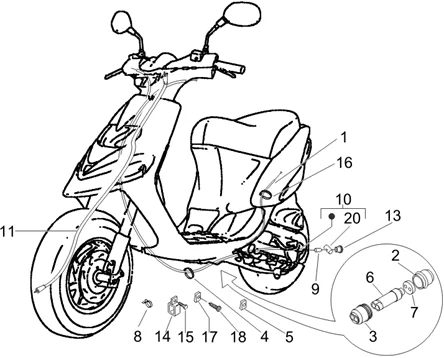

Vehicle Exploded View - GILERA STALKER 50 2007-2008 GILERA

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
Transmissions
Search
TRANSMISSION CABLE KIT- THROTTLE (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2012>/GILERA 50 STALKER -268403-

1
P2R reference P2R reference 66071
Maker reference Maker reference 268403

TRANSMISSION CABLE KIT- THROTTLE (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2012>/GILERA 50 STALKER -268403-

More information

Quantity required : 2
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271976-

2
P2R reference P2R reference 66108
Maker reference Maker reference 271976

SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976-

More information

Quantity required : 2
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271977-

3
P2R reference P2R reference 66109
Maker reference Maker reference 271977

SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977-

More information

Quantity required : 2
257134 - COLLIER

4
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 4
217280 - COLLIER

5
P2R reference P2R reference 65935
Maker reference Maker reference 217280

217280 - COLLIER

More information

Quantity required : 2
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

6
P2R reference P2R reference 66083
Maker reference Maker reference 269571

THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

More information

Quantity required : 2
CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50cc 2 stroke -269572-

7
P2R reference P2R reference 66084
Maker reference Maker reference 269572

CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50CC 2 STROKE -269572-

More information

Quantity required : 2
231590 - CLIPS

8
P2R reference P2R reference 65967
Maker reference Maker reference 231590

231590 - CLIPS

More information

Quantity required : 2
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640-

9
P2R reference P2R reference 65794
Maker reference Maker reference 179640

REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640-

More information

Quantity required : 2
REAR BRAKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" GILERA 50 STALKER -561151-

10
P2R reference P2R reference 79765
Maker reference Maker reference 561151

REAR BRAKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" GILERA 50 STALKER -561151-

More information

Quantity required : 1
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 GILERA STALKER -561152-

11
P2R reference P2R reference 79766
Maker reference Maker reference 561152

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 GILERA STALKER -561152-

More information

Quantity required : 2
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310-

13
P2R reference P2R reference 66088
Maker reference Maker reference 270310

NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310-

More information

Quantity required : 2
216983 - COLLIER

14
P2R reference P2R reference 65927
Maker reference Maker reference 216983

216983 - COLLIER

More information

Quantity required : 2
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838-

15
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838-

More information

Quantity required : 2
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

16
P2R reference P2R reference 65742
Maker reference Maker reference 145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

More information

Quantity required : 2
FIXING PLATE FOR BRAKE CABLE ON CRANKCASE "PIAGGIO GENUINE PART" FLY, LIBERTY, TYPHOON, NRG, ZIP/ VESPA LX, SPRINT, S -564497-

17
P2R reference P2R reference 67059
Maker reference Maker reference 564497

FIXING PLATE FOR BRAKE CABLE ON CRANKCASE "PIAGGIO GENUINE PART" FLY, LIBERTY, TYPHOON, NRG, ZIP/ VESPA LX, SPRINT, S -564497-

More information

Quantity required : 2
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

18
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

More information

Quantity required : 2
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

18
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

More information

Quantity required : 2
BUSH FOR BRAKE CABLE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+ MAXISCOOTER -266040-

20
P2R reference P2R reference 66051
Maker reference Maker reference 266040

BUSH FOR BRAKE CABLE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+ MAXISCOOTER -266040-

More information

Quantity required : 2
