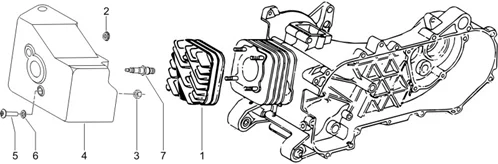

Vehicle Exploded View - GILERA STALKER 50 2007-2008 GILERA

Moteur : 01.12 COUVERCLE CULASSE
Couvercle culasse
Search
CYLINDER HEAD- "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50 CC 2 stroke -2865344-

1
P2R reference P2R reference 66174
Maker reference Maker reference 2865344

CYLINDER HEAD- "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50 CC 2 STROKE -2865344-

More information

Quantity required : 2
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

2
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 4
NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 2 stroke -288531-

3
P2R reference P2R reference 66194
Maker reference Maker reference 288531

NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 2 STROKE -288531-

More information

Quantity required : 4
CYLINDER AIR SHROUD "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50cc 2 stroke -845692-

4
P2R reference P2R reference 69364
Maker reference Maker reference 845692

CYLINDER AIR SHROUD "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50CC 2 STROKE -845692-

More information

Quantity required : 2
1A003108 - VIS

5
P2R reference P2R reference 109085
Maker reference Maker reference 0083755

1A003108 - VIS

More information

Quantity required : 4
1A003108 - VIS

5
P2R reference P2R reference 109085
Maker reference Maker reference 1A003108

1A003108 - VIS

More information

Quantity required : 4
078307 - RONDELLE

6
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

078307 - RONDELLE

More information

Quantity required : 4
SPARK PLUG "PIAGGIO GENUINE PART" CHAMPION RN3C "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -438075-

7
P2R reference P2R reference 66531
Maker reference Maker reference 438075

SPARK PLUG "PIAGGIO GENUINE PART" CHAMPION RN3C "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -438075-

More information

Quantity required : 2
