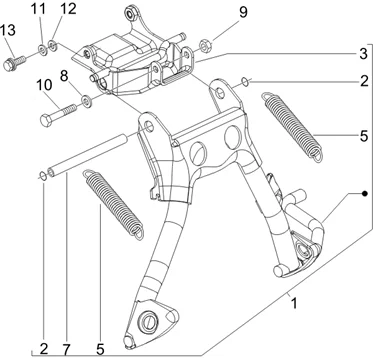

Vehicle Exploded View - GILERA STALKER 50 2007-2008 GILERA

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
Béquille/s
Search
CENTER STAND "PIAGGIO GENUINE PART" 50 NRG 1998>/GILERA 50 STALKER 1998>2011, RUNNER 2005 -581537-

1
P2R reference P2R reference 67222
Maker reference Maker reference 581537

CENTER STAND "PIAGGIO GENUINE PART" 50 NRG 1998>/GILERA 50 STALKER 1998>2011, RUNNER 2005 -581537-

More information

Quantity required : 2
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 stroke -271695-

2
P2R reference P2R reference 66102
Maker reference Maker reference 271695

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -271695-

More information

Quantity required : 4
CENTRAL STAND SUPPORT -272929-

3
P2R reference P2R reference 66121
Maker reference Maker reference 272929

CENTRAL STAND SUPPORT -272929-

More information

Quantity required : 2
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940-

5
P2R reference P2R reference 66143
Maker reference Maker reference 278940

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940-

More information

Quantity required : 4
CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50cc -583603-

7
P2R reference P2R reference 67287
Maker reference Maker reference 583603

CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC -583603-

More information

Quantity required : 2
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

8
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 2
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

9
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 2
SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -030080-

10
P2R reference P2R reference 65617
Maker reference Maker reference 0300805

SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -030080-

More information

Quantity required : 2
MULTIPURPOSE WASHER (8,2x20x2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

11
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

More information

Quantity required : 4
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

12
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 4
031122 - BOULON FIX BRAS

13
P2R reference P2R reference 65649
Maker reference Maker reference 0311225

031122 - BOULON FIX BRAS

More information

Quantity required : 4
