Vehicle Exploded View - APRILIA SR 50 Air 1993-1996 Vertical Cylinder
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

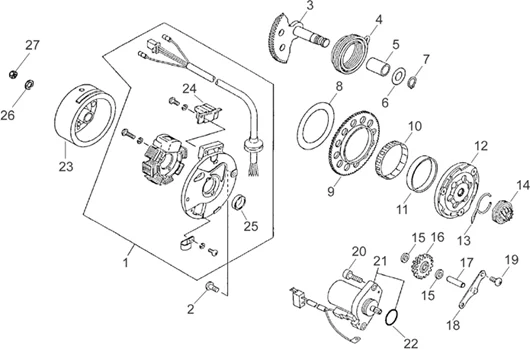

Moteur : 29.17 VOLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/571/SR_50_Air_1993-1996_Vertical_Cylinder_29.17.PNG)
1 |
AP8206201 - STATOR AMICO COMPLET More informationQuantity required : 1 |
||||||
|
3 |
AP8206122 - ARBRE DEMARRAGE CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/9/4/img/55694.jpg)
4 |
AP8206149 - RETOUR LEVIER DEMARRAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/9/6/img/55696.jpg)
5 |
KICK START SHAFT BUSH 15X20X30 "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SR, GULLIVER MOTEUR MIRANELLI -AP8206152- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/1/7/img/55717.jpg)
6 |
AP8206193 - RONDELLE ACIER BLEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/1/0/img/61010.jpg)
7 |
AP8501469 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 1 |
||||||
|
9 |
AP8206144 - COURONNE DEMARR.ELECTR. More informationQuantity required : 1 |
||||||
|
10 |
AP8206210 - CAGE More informationQuantity required : 1 |
||||||
|
12 |
AP8206147 - ROUE LIBRE COMPLETE More informationQuantity required : 1 |
||||||
|
13 |
AP8206148 - RESSORT ALLUMAGE More informationQuantity required : 1 |
||||||
|
14 |
AP8206692 - ENGRENAGE COULISS.M/M More informationQuantity required : 1 |
||||||
|
15 |
AP8206206 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
AP8206665 - ENGR. DOUBLE INTERM.+BOUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/0/4/img/55704.jpg)
17 |
AP8206172 - PIVOT More informationQuantity required : 1 |
||||||
|
19 |
AP8206202 - VIS More informationQuantity required : 2 |
||||||
|
20 |
AP8502564 - VIS More informationQuantity required : 2 |
||||||
|
21 |
AP8224103 - DEMARREUR; More informationQuantity required : 1 |
||||||
|
24 |
AP8206226 - EXTRACTEUR VOLANT MAGN. More informationQuantity required : 1 |
||||||
|
26 |
AP8206205 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
AP8206183 - ECROU More informationQuantity required : 1 |
