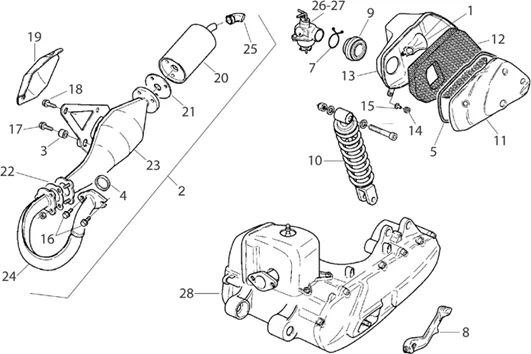

Vehicle Exploded View - APRILIA SR 50 Air 1993-1996 Vertical Cylinder

	P2R reference
	Maker reference	AP8232471

Manchon d'aspiration;

	P2R reference
	Maker reference	AP8219299

POT ECHA.CAT. -CH-

	P2R reference
	Maker reference	AP8219298

POT ECHA.-E-

	P2R reference
	Maker reference	AP8219297

POT ECHA.CAT. -NL- (PL)

	P2R reference
	Maker reference	AP8219292

ECHAPPEM.SR 50 -=8219292

	P2R reference
	Maker reference	AP8219290

POT ECHA.CAT. -A-

	P2R reference
	Maker reference	AP8219278

POT ECHA.-SF- (PL)

	P2R reference
	Maker reference	AP8219206

POT ECHA.-B-

	P2R reference
	Maker reference	AP8219202

POT ECHA. -P-

	P2R reference
	Maker reference	AP8219311

POT ECHA.-D- CAT.

	P2R reference
	Maker reference	AP8219177

POT ECHAPP. CPL. COIBEN

	P2R reference
	Maker reference	AP8219169

POT ECHAPPEMENT (PL)

	P2R reference
	Maker reference	AP8219130

ECHAPPEMENT (PL)

	P2R reference	72280
	Maker reference	AP8220346

SILENTBLOC FOR EXHAUST/OR SUSPENSION ARM "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, STELVIO/APRILIA 125 LEONARDO, 50 SCARABEO 2 STROKE -AP8220346-

	P2R reference	56863
	Maker reference	AP8220357

AP8220357 - SILENTBLOC POT VERT

	P2R reference	56727
	Maker reference	AP8219212

AP8219212 - JOINT POT D'ECHAPPEMENT

	P2R reference
	Maker reference	AP8219105

Joint echappement

	P2R reference
	Maker reference	AP8220385

JOINT

	P2R reference
	Maker reference	AP8221094

Res. hélic. torsion

	P2R reference	58022
	Maker reference	AP8232629

AP8232629 - LEVIER ALLUMAGE;

	P2R reference
	Maker reference	AP8201379

Manchon de carburateur

	P2R reference	55533
	Maker reference	AP8203631

AP8203631 - AMORTISSEUR, NOIR

	P2R reference
	Maker reference	AP8230910

COUVERCLE FILTRE A AIR

	P2R reference
	Maker reference	AP8201378

Filtre air

	P2R reference
	Maker reference	AP8232469

Boitier filtre a air

	P2R reference	58001
	Maker reference	AP8231622

AP8231622 - BASE CORPS FILTRE;

	P2R reference	71276
	Maker reference	AP8112600

AP8112600 - CAOUTCHOUC

	P2R reference	56869
	Maker reference	AP8220370

AP8220370 - CAOUTCHOUC CORPS FILTRE

	P2R reference	46928
	Maker reference	AP8121725

AP8121725 - "DOUILLE EN ""T"""

	P2R reference	71485
	Maker reference	AP8121795

AP8121795 - DOUILLE EN T

	P2R reference	71898
	Maker reference	AP8150521

AP8150521 - VITE TCEI M6X16 INOX

	P2R reference
	Maker reference	AP8152263

VIS TE M 8 X 35

	P2R reference
	Maker reference	AP8152264

VIS TE M 8 X 20

	P2R reference
	Maker reference	AP8219557

PROTECTION POT ECHAPP

	P2R reference
	Maker reference	AP8232691

PROTECTION SILENCIEUX SR

	P2R reference
	Maker reference	AP8219135

SILENCIEUX SR 50 94

	P2R reference
	Maker reference	AP8219180

SILENCIEUX

	P2R reference	55370
	Maker reference	AP8201574

AP8201574 - JOINT POT D'ECHAPPEMENT;

	P2R reference	56724
	Maker reference	AP8219149

AP8219149 - JOINT ECHAPPEMENT

	P2R reference
	Maker reference	AP8219181

ECHAPPEMENT CENTRAL

	P2R reference
	Maker reference	AP8219147

ECHAPPEMENT CENTRAL

	P2R reference
	Maker reference	AP8219148

Coude d'echappement pl.

	P2R reference
	Maker reference	AP8219179

PIPE ECHAPPAEMENT

	P2R reference
	Maker reference	AP8206677

Carburateur

	P2R reference
	Maker reference	AP8222358

CARBURATEUR TK3A=8206520

	P2R reference
	Maker reference	AP8219182

EXTREMITE SILENCIEUX

	P2R reference
	Maker reference	AP8219178

JOINT DE POT

	P2R reference
	Maker reference	AP8206678

Carburateur

	P2R reference
	Maker reference	AP8206676

Carburateur

	P2R reference
	Maker reference	AP8206670

CARBURATEUR PHBN 12-GS

	P2R reference
	Maker reference	AP8222390

Moteur

	P2R reference
	Maker reference	AP8222389

Moteur
