Vehicle Exploded View - APRILIA SR 50 Air 1993-1996 Vertical Cylinder
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

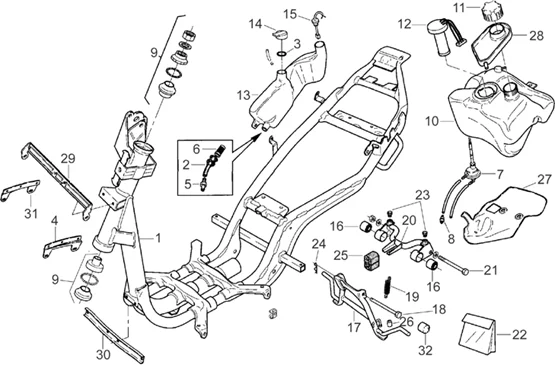

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/571/SR_50_Air_1993-1996_Vertical_Cylinder_28.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
2 |
RUBBER SPACER FOR OIL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA 50-125 -AP8102223- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/0/img/56840.jpg)
3 |
GASKET FOR OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA SR 50 1993>2004 -AP8220195- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
5 |
2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
6 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224- More informationQuantity required : 1 |
||||||
7 |
AP8201824 - ROBINET ESSENCE A DEPRESS. More informationQuantity required : 1 |
||||||
|
9 |
AP8203666 - SERIE DIRECTION COMPLETE More informationQuantity required : 1 |
||||||
|
11 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
12 |
AP8212958 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
|
13 |
AP8230913 - RESERVOIR HUILE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
14 |
OIL TANK CAP "PIAGGIO GENUINE PART "APRILIA - COMMON FOR ALL 50CC SCOOTERS -AP8220421- More informationQuantity required : 1 |
||||||
|
15 |
AP8212481 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/0/img/72280.jpg)
16 |
SILENTBLOC FOR EXHAUST/OR SUSPENSION ARM "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, STELVIO/APRILIA 125 LEONARDO, 50 SCARABEO 2 STROKE -AP8220346- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
19 |
AP8221197 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
23 |
AP8220238 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
24 |
AP8201431 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/7/6/img/56876.jpg)
25 |
AP8220399 - TAMPON DE CALAGE More informationQuantity required : 1 |
||||||
|
26 |
AP8220239 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
28 |
AP8220344 - CUVE COLLECTE ESSENCE More informationQuantity required : 1 |
||||||
|
32 |
AP8221142 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
