Vehicle Exploded View - APRILIA SR 50 Air 1993-1996 Vertical Cylinder
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

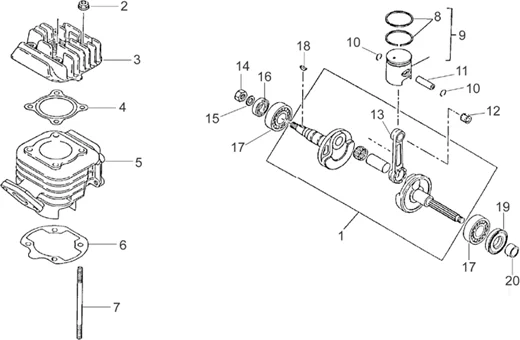

Moteur : 29.11 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/571/SR_50_Air_1993-1996_Vertical_Cylinder_29.11.PNG)
5 |
AP8206224 - CYLINDRE AV.PISTON More informationQuantity required : 1 |
||||||
|
5 |
AP8206456 - CYLINDRE AV.PISTON More informationQuantity required : 1 |
||||||
|
7 |
AP8206189 - VIS SANS T?TE More informationQuantity required : 4 |
||||||
|
8 |
AP8206120 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
8 |
AP8206220 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
9 |
AP8206218 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
9 |
AP8206219 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
10 |
AP8206176 - BAGUE DE BUTEE AXE More informationQuantity required : 2 |
||||||
|
11 |
AP8206174 - AXE More informationQuantity required : 1 |
||||||
|
12 |
AP8206154 - CAGE AXE More informationQuantity required : 1 |
||||||
|
13 |
AP8206223 - BIELLE CPL. More informationQuantity required : 1 |
||||||
|
14 |
AP8206183 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
AP8206205 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
AP8206212 - JOINT SPI More informationQuantity required : 1 |
||||||
|
17 |
AP8509135 - ROULEMENT More informationQuantity required : 2 |
||||||
|
18 |
AP8206182 - CLAVETTE VOLANT MAGNET More informationQuantity required : 1 |
||||||
|
19 |
AP8206213 - JOINT SPI More informationQuantity required : 1 |
||||||
|
20 |
SPACER- FOR CRANKSHAFT "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, AMICO, SR, SCARABEO 2 STROKE -AP8206187- More informationQuantity required : 1 |
