Vehicle Exploded View - APRILIA SR 50 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

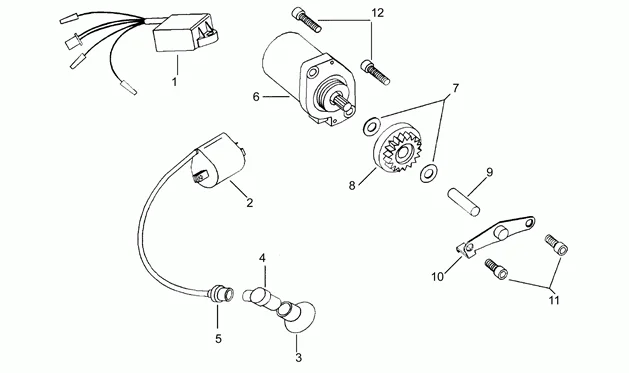

Moteur : 7 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/570/SR_50_1994-1996_7.PNG)
1 |
AP8206470 - CENTRALE POUR VOLANT More informationQuantity required : 1 |
||||||
|
1 |
Boîtier coupure all.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/7/9/img/55679.jpg)
2 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, AMICO -AP8206125- More informationQuantity required : 1 |
||||||
|
3 |
AP8220438 - CAOUTCHOUC; More informationQuantity required : 1 |
||||||
|
4 |
AP8206108 - PIPE BOUGIE More informationQuantity required : 1 |
||||||
|
4 |
Pipe bougie; |
||||||
|
5 |
Caoutchouc cache-fil; |
||||||
|
6 |
AP8224103 - DEMARREUR; More informationQuantity required : 1 |
||||||
|
7 |
AP8206206 - RONDELLE More informationQuantity required : 1 |
||||||
|
8 |
AP8206665 - ENGR. DOUBLE INTERM.+BOUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/0/4/img/55704.jpg)
9 |
AP8206172 - PIVOT More informationQuantity required : 2 |
||||||
|
10 |
AP8206700 - PLAQ.ENGR.DBLE INTERM. More informationQuantity required : 1 |
||||||
|
11 |
AP8206202 - VIS More informationQuantity required : 1 |
||||||
|
12 |
AP8502564 - VIS More informationQuantity required : 4 |
