Vehicle Exploded View - APRILIA SR 50 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

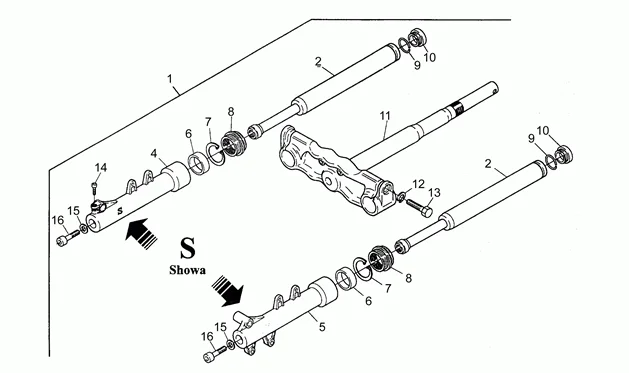

Chassis : 12 FOURCHE AV. SHOWA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/570/SR_50_1994-1996_12.PNG)
1 |
FORCELLA ---VEDI=8203646 |
||||||
|
2 |
TUBE/FOURCHE GULLIV (PL) |
||||||
|
4 |
Fourreau D |
||||||
|
5 |
Fourreau G |
||||||
|
6 |
Joint spi |
||||||
|
7 |
Bague seeger |
||||||
|
8 |
Pare-poussière |
||||||
|
9 |
AP8203702 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
10 |
AP8203777 - BOUCHON; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/1/2/8/img/57128.jpg)
11 |
AP8223004 - BASE AVEC TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/6/1/img/55661.jpg)
12 |
FORK OIL SEAL GASKET- "PIAGGIO GENUINE PART" APRILIA 50 SR, CLASSIC -AP8203999 More informationQuantity required : 2 |
||||||
|
13 |
VIS |
||||||
|
14 |
AP8203571 - VIS More informationQuantity required : 1 |
||||||
|
15 |
AP8203572 - RONDELLE ETANCHEITE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
16 |
600123 - BOULON M8X30 More informationQuantity required : 2 |
