Vehicle Exploded View - APRILIA SR 50 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

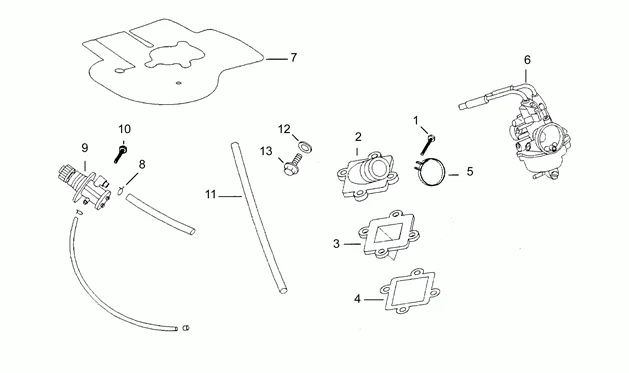

Moteur : 2 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/570/SR_50_1994-1996_2.PNG)
1 |
AP8502564 - VIS More informationQuantity required : 4 |
||||||
|
2 |
AP8206466 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
2 |
AP8206565 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
3 |
AP8206557 - SOUPAPE LAMELLES CPL More informationQuantity required : 1 |
||||||
|
4 |
AP8206486 - JOINT SOUPAPE LAMELLE More informationQuantity required : 1 |
||||||
|
5 |
AP8206181 - COLLIER DURITE More informationQuantity required : 1 |
||||||
|
6 |
AP8206751 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
6 |
AP8206680 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
7 |
AP8206473 - PROTECTION CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/6/5/img/55965.jpg)
8 |
AP8206711 - COLLIER More informationQuantity required : 2 |
||||||
|
9 |
AP8206119 - POMPE A HUILE COMPLETE More informationQuantity required : 1 |
||||||
|
10 |
Vis |
||||||
|
11 |
AP8206131 - RACCORD+TUBE RENIF. More informationQuantity required : 1 |
||||||
|
12 |
AP8206488 - JOINT VIS More informationQuantity required : 1 |
||||||
|
13 |
AP8206203 - VIS BRIDE More informationQuantity required : 1 |
