Vehicle Exploded View - APRILIA SR 50 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

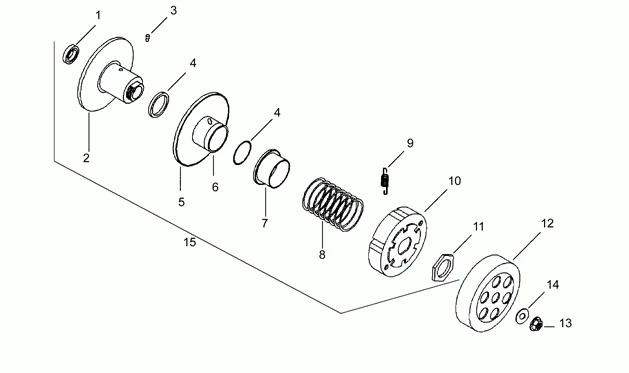

Moteur : 6 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/570/SR_50_1994-1996_6.PNG)
1 |
AP8206214 - JOINT SPI More informationQuantity required : 1 |
||||||
|
2 |
AP8206157 - POULIE SEC.FIXE More informationQuantity required : 1 |
||||||
|
3 |
AP8206198 - ROULEAU GUIDE-VARIATEUR More informationQuantity required : 2 |
||||||
|
4 |
AP8206200 - JOINT SPI More informationQuantity required : 1 |
||||||
|
5 |
AP8206158 - POULIE SEC.MOBILE More informationQuantity required : 1 |
||||||
|
6 |
Joint torique |
||||||
|
7 |
AP8206178 - RONDELLE RESSORT VARIATEUR More informationQuantity required : 1 |
||||||
|
8 |
AP8206191 - RESS.POULIE SEC. More informationQuantity required : 1 |
||||||
|
9 |
AP8206196 - RES.RAP.SABOTS EMB. More informationQuantity required : 1 |
||||||
|
10 |
AP8206703 - EMBRAYAGE CENTRIFUGE COMPLET More informationQuantity required : 1 |
||||||
|
11 |
AP8206199 - ECROU More informationQuantity required : 2 |
||||||
|
12 |
AP8206135 - CLOCHE EMBRAYAGE COMPLETE More informationQuantity required : 1 |
||||||
|
13 |
Ecrou |
||||||
|
14 |
AP8502471 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
15 |
AP8206749 - VARIATEUR AVEC EMBRAYAGE More informationQuantity required : 1 |
