Vehicle Exploded View - APRILIA SR 50 1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

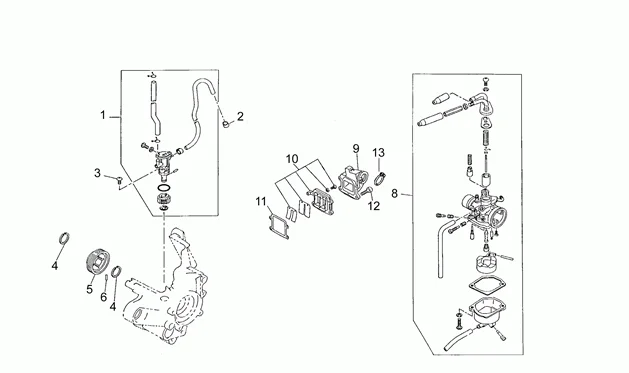

Chassis : 8 ASPIRATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/569/SR_50_1993_8.PNG)
1 |
AP8206119 - POMPE A HUILE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/6/5/img/55965.jpg)
2 |
AP8206711 - COLLIER More informationQuantity required : 2 |
||||||
|
3 |
Vis |
||||||
|
4 |
AP8206179 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 2 |
||||||
|
5 |
AP8206746 - ENGRENAGE MENANT POMPE HUILE More informationQuantity required : 1 |
||||||
|
6 |
AP8206578 - ROULEAU More informationQuantity required : 2 |
||||||
|
8 |
CARBURATEUR TK3A=8206520 |
||||||
|
9 |
AP8206514 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
10 |
AP8206518 - SOUPAPE LAMELLES More informationQuantity required : 1 |
||||||
|
11 |
AP8206787 - JOINT SOUPAPE LAMELLE More informationQuantity required : 1 |
||||||
|
12 |
AP8502564 - VIS More informationQuantity required : 10 |
||||||
|
13 |
AP8206181 - COLLIER DURITE More informationQuantity required : 1 |
