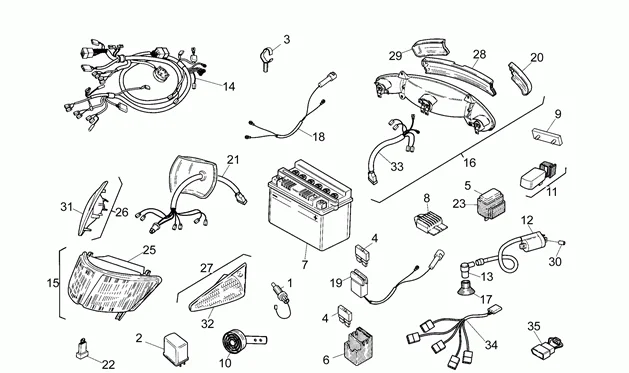

Chassis : 12 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/569/SR_50_1993_12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
0 |
SECURITY DIODE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC -AP8212588- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
1 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
2 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
3 |
AP8220269 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
4 |
CM225607 - FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
5 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 1 |
||||||
|
6 |
AP8220342 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
7 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
|
8 |
AP8212799 - REGULATEUR DE TENSION; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
9 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
|
10 |
58237R - HORN 12 V-CC More informationQuantity required : 1 |
||||||
|
11 |
AP8206470 - CENTRALE POUR VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/7/9/img/55679.jpg)
12 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, AMICO -AP8206125- More informationQuantity required : 1 |
||||||
|
13 |
AP8206108 - PIPE BOUGIE More informationQuantity required : 1 |
||||||
|
14 |
AP8212612 - FAISCEAU SR H20/AIR 95 More informationQuantity required : 1 |
||||||
|
15 |
AP8212497 - FEU AVANT SR 94/96 More informationQuantity required : 1 |
||||||
|
16 |
AP8212596 - FEU AR SR COMPLET More informationQuantity required : 1 |
||||||
|
17 |
AP8206128 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
18 |
AP8212670 - CABLAGE DEMARREUR More informationQuantity required : 1 |
||||||
|
19 |
AP8120754 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/6/img/56276.jpg)
20 |
AP8212582 - CABOCHON CLIGNOTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/4/img/56254.jpg)
22 |
DIODE "PIAGGIO GENUINE PART" 50 APRILIA 1998>2005, 650 PEGASO, 1000 CAPONORD, FUTURA -AP8212382- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
23 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/4/img/56274.jpg)
28 |
LENS FOR TAIL LAMP "PIAGGIO GENUINE PART" PIAGGIO 50 SR 1993>1996 -AP8212580- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/5/img/56275.jpg)
29 |
AP8212581 - CABOCHON AR DR. More informationQuantity required : 1 |
||||||
|
30 |
AP8121020 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/8/img/56278.jpg)
31 |
AP8212592 - CABOCHON AV.DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/9/img/56279.jpg)
32 |
AP8212593 - CABOCHON AV.G. More informationQuantity required : 1 |
