Vehicle Exploded View - APRILIA SR 50 1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

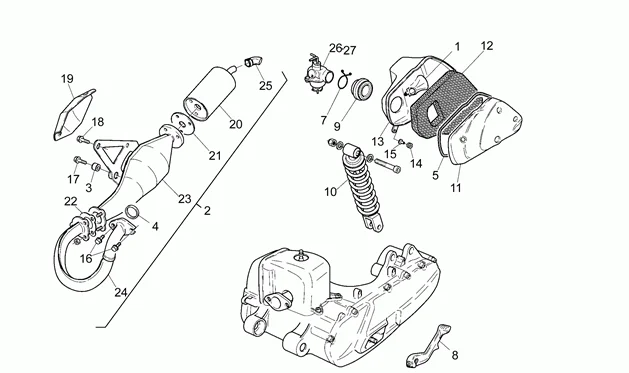

Chassis : 11 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/569/SR_50_1993_11.PNG)
0 |
AP8201574 - JOINT POT D'ECHAPPEMENT; More informationQuantity required : 1 |
||||||
|
0 |
AP8219149 - JOINT ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
AP8220357 - SILENTBLOC POT VERT More informationQuantity required : 1 |
||||||
|
5 |
AP8220407 - JOINT COFFRE NOIR 7X8 More informationQuantity required : 1 |
||||||
|
8 |
AP8232629 - LEVIER ALLUMAGE; More informationQuantity required : 1 |
||||||
|
10 |
AP8203631 - AMORTISSEUR, NOIR More informationQuantity required : 1 |
||||||
|
13 |
AP8231622 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
14 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/9/img/56869.jpg)
14 |
AP8220370 - CAOUTCHOUC CORPS FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
15 |
AP8121795 - DOUILLE EN T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
15 |
AP8121725 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
16 |
AP8150521 - VITE TCEI M6X16 INOX More informationQuantity required : 2 |
