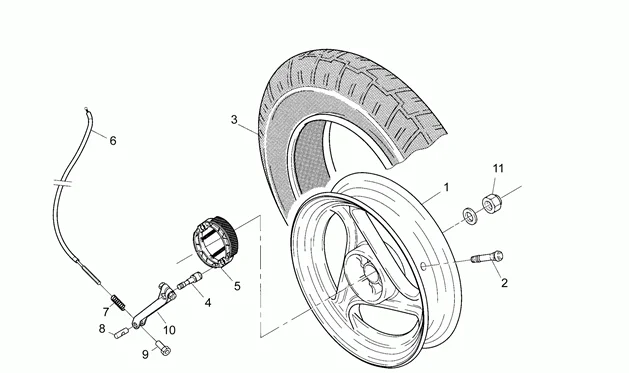

Chassis : 15 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/569/SR_50_1993_15.PNG)
1 |
AP8208378 - ROUE AR SR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.JPG)
2 |
AP8201546 - SOUPAPE TUBELESS; More informationQuantity required : 1 |
||||||
|
5 |
AP8213133 - SABOTS A RESS-PAIRE More informationQuantity required : 1 |
||||||
|
6 |
AP8214131 - CABLE FREIN ARRIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/8/img/56388.jpg)
7 |
AP8213137 - RES. HELIC. COMPR More informationQuantity required : 1 |
||||||
|
8 |
AP8221120 - AXE FIX. CABLE FREIN More informationQuantity required : 1 |
||||||
|
9 |
AP8101103 - REGLAGE LEVIER FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
10 |
AP8232678 - LEVIER FREIN AR BR.GALVA; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
11 |
AP8152244 - ECROU DAX BRID. More informationQuantity required : 1 |
