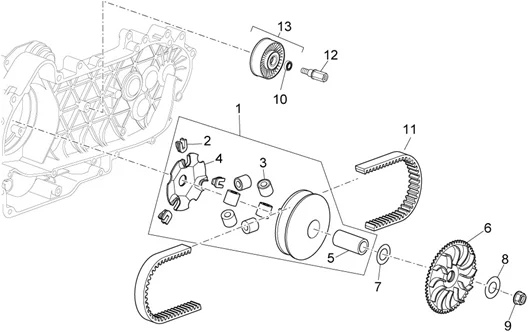

Tavole : 49 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/2/0/img/157620.jpg)
0 |
TRANSMISSION KIT"PIAGGIO GENUINE PARTS" BELT,ROLLERS,GUIDES- 250-300 BEVERLY, CARNABY/APRILIA 250-300 SCARABEO LIGHT, SPORT-CITY -1R000449- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/5/1/img/139451.jpg)
1 |
DRIVING PULLEY/VARIATOR "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, VESPA GTS, X7/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY CUB, 300 SR-MAX -CM1444085- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/5/img/69255.jpg)
2 |
VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 250-300 MP3 2006>2018, 250 X7, X8, X9 2005>2008/VESPA 250-300 GTS-GTV 2005>2018 -843028- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/4/img/69604.jpg)
3 |
VARIATOR ROLLER "PIAGGIO GENUINE PART" APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (SOLD PER UNIT) -849480- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
4 |
VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -485710- More informationQuantity required : 1 |
||||||
5 |
483889 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/6/img/69136.jpg)
6 |
DRIVE PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE 250-300 MAXISCOOTER -840193- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
7 |
DRIVING PULLEY WASHER WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -434885- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/3/img/69153.jpg)
8 |
840533 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
9 |
NUT - FOR DRIVEN PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -486324- More informationQuantity required : 1 |
||||||
|
10 |
82843R - PALIER RADIAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/3/2/img/72632.jpg)
11 |
BELT "PIAGGIO GENUINE PART" PIAGGIO 250 BEVERLY 2006>, 300 BEVERLY 2010>, CARNABY 2009>/APRILIA 125-250 SPORT-CITY 2006>, 250-300 SCARABEO -B013360- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/8/img/68838.jpg)
12 |
SCREW - FOR BELT TENSIONING PULLEY "PIAGGIO GENUINE PART" 125-250-300 BEVERLY, CARNABY, 125 X10/APRILIA 125-250 SPORT-CITY, SCARABEO -829326- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/4/img/69094.jpg)
13 |
BELT PULLEY "PIAGGIO GENUINE PART" 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, 125 X10/APRILIA 125-300 ATLANTIC/GILERA 250-300 NEXUS -833989- More informationQuantity required : 1 |
