Vehicle Exploded View - APRILIA SPORT CITY STREET 300 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

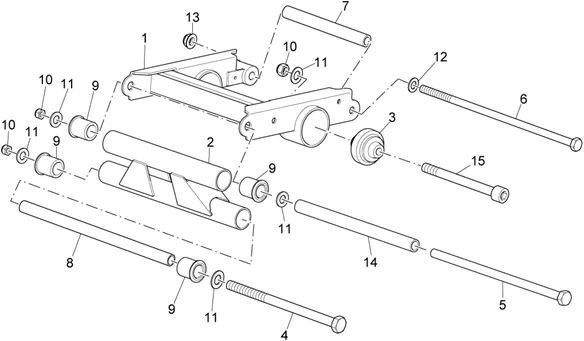

Tavole : 05 BIELLETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/8/img/72338.jpg)
1 |
ENGINE CONNECTING ELEMENT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT CITY 2006>2012 -AP8235181- More informationQuantity required : 1 |
||||||
2 |
AP8235185 - BIELLETTA ATTACCO TELAIO More informationQuantity required : 1 |
||||||
|
3 |
AP8161155 - SILENT BLOCK More informationQuantity required : 2 |
||||||
|
4 |
AP8121191 - PERNO INCERNIERAMENTO TELAIO More informationQuantity required : 1 |
||||||
|
5 |
AP8161019 - PERNO INCERNIERAMENTO MOTORE More informationQuantity required : 1 |
||||||
|
6 |
AP8121192 - PERNO INCERNIERAMENTO MOTORE More informationQuantity required : 1 |
||||||
|
7 |
AP8121628 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
8 |
AP8121190 - BUSSOLA BIELLETTA More informationQuantity required : 1 |
||||||
|
9 |
AP8235186 - BUSSOLA BIELLETTA More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
10 |
AP8150432 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
11 |
AP8152018 - RONDELLE FER PLATE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
12 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
13 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
14 |
AP8161016 - BUSSOLA BIELLETTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/6/img/71906.jpg)
15 |
AP8150554 - VITE TCEI M12X90 More informationQuantity required : 1 |
