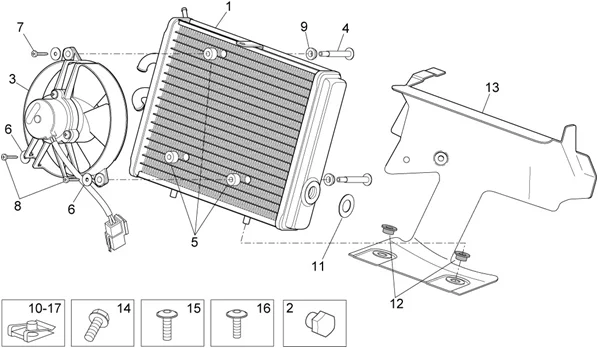

Vehicle Exploded View - APRILIA SPORT CITY STREET 300 4T 4V E3 2012 APRILIA

Tavole : 22 RADIATEUR
Radiateur
Search
656874 - RADIATEUR EAU

1
P2R reference P2R reference 68343
Maker reference Maker reference 656874

656874 - RADIATEUR EAU

More information

Quantity required : 1
AP8144777 - TAPPO FILETTATO

2
P2R reference P2R reference 71783
Maker reference Maker reference AP8144777

AP8144777 - TAPPO FILETTATO

More information

Quantity required : 1
AP8124446 - VENTILATEUR CPL.

3
P2R reference P2R reference 71566
Maker reference Maker reference AP8124446

AP8124446 - VENTILATEUR CPL.

More information

Quantity required : 1
AP8121464 - TIGE;

4
P2R reference P2R reference 71466
Maker reference Maker reference AP8121464

AP8121464 - TIGE;

More information

Quantity required : 3
AP8125848 - ENTRETOISE

5
P2R reference P2R reference 71587
Maker reference Maker reference AP8125848

AP8125848 - ENTRETOISE

More information

Quantity required : 3
AP8150159 - RONDELLE

6
P2R reference P2R reference 71826
Maker reference Maker reference AP8150159

AP8150159 - RONDELLE

More information

Quantity required : 3
AP8150423 - VIS

7
P2R reference P2R reference 71880
Maker reference Maker reference AP8150423

AP8150423 - VIS

More information

Quantity required : 1
AP8150270 - VIS

8
P2R reference P2R reference 71848
Maker reference Maker reference AP8150270

AP8150270 - VIS

More information

Quantity required : 2
AP8221218 - DOUILLE GARDE-BOUE

9
P2R reference P2R reference 72305
Maker reference Maker reference AP8221218

AP8221218 - DOUILLE GARDE-BOUE

More information

Quantity required : 3
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

10
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1
TEMPERATURE SENSOR WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA -AP8121837-

11
P2R reference P2R reference 71490
Maker reference Maker reference AP8121837

TEMPERATURE SENSOR WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA -AP8121837-

More information

Quantity required : 1
AP8101372 - SILENTBLOC

12
P2R reference P2R reference 71151
Maker reference Maker reference AP8101372

AP8101372 - SILENTBLOC

More information

Quantity required : 2
AP8134976 - CONVOGLIATORE ARIA

13
P2R reference P2R reference 71716
Maker reference Maker reference AP8134976

AP8134976 - CONVOGLIATORE ARIA

More information

Quantity required : 1
AP8152278 - VIS BRIDE M6X16

14
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

AP8152278 - VIS BRIDE M6X16

More information

Quantity required : 1
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

15
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

16
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

More information

Quantity required : 1
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

17
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 1
