Vehicle Exploded View - APRILIA SPORT CITY STREET 300 4T 4V E3 2012 APRILIA

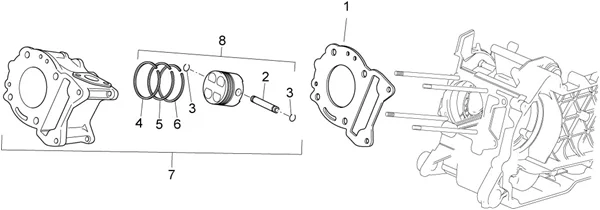

Tavole : 40 CYLINDRE
Cylindre
Search
CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112-

1
P2R reference P2R reference 70574
Maker reference Maker reference 875112

CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112-

More information

Quantity required : 1
CYLINDER BASE GASKET (0,06MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875113-

1
P2R reference P2R reference 70575
Maker reference Maker reference 875113

CYLINDER BASE GASKET (0,06MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875113-

More information

Quantity required : 1
CYLINDER BASE GASKET(0,08MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875114-

1
P2R reference P2R reference 70576
Maker reference Maker reference 875114

CYLINDER BASE GASKET(0,08MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875114-

More information

Quantity required : 1
875005 - AXE DE PISTON

2
P2R reference P2R reference 70569
Maker reference Maker reference 875005

875005 - AXE DE PISTON

More information

Quantity required : 1
875096 - CIRCLIPS

3
P2R reference P2R reference 70571
Maker reference Maker reference 875096

875096 - CIRCLIPS

More information

Quantity required : 2
874958 - SEGMENT

4
P2R reference P2R reference 70560
Maker reference Maker reference 874958

874958 - SEGMENT

More information

Quantity required : 1
874960 - SEGMENT

5
P2R reference P2R reference 70561
Maker reference Maker reference 874960

874960 - SEGMENT

More information

Quantity required : 1
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, VESPA GTS -B015161-

6
P2R reference P2R reference 94618
Maker reference Maker reference B015161

OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, VESPA GTS -B015161-

More information

Quantity required : 1
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, X7, VESPA GTS/GILERA 300 NEXUS/APRILIA 300 ATLANTIS, SPORT-CITY, SR-MAX, SCARABEO -876457-

7
P2R reference P2R reference 70610
Maker reference Maker reference 876457

CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, X7, VESPA GTS/GILERA 300 NEXUS/APRILIA 300 ATLANTIS, SPORT-CITY, SR-MAX, SCARABEO -876457-

More information

Quantity required : 1
PISTON "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300 CC -8764580001-

8
P2R reference P2R reference 70611
Maker reference Maker reference 8764580001

PISTON "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300 CC -8764580001-

More information

Quantity required : 1
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580002-

8
P2R reference P2R reference 70612
Maker reference Maker reference 8764580002

PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580002-

More information

Quantity required : 1
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580003-

8
P2R reference P2R reference 70613
Maker reference Maker reference 8764580003

PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580003-

More information

Quantity required : 1
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580004-

8
P2R reference P2R reference 70614
Maker reference Maker reference 8764580004

PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580004-

More information

Quantity required : 1
