Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

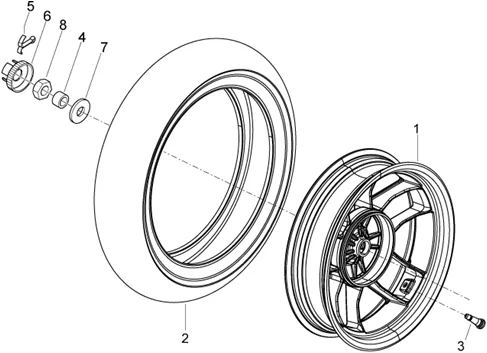

Chassis : 28.25 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.25.PNG)
1 |
666286 - ROUE AR More informationQuantity required : 1 |
||||||
|
1 |
853051 - ROUE AR NUE More informationQuantity required : 1 |
||||||
|
2 |
853075 - PNEU 120/70-14" 52K CITY ONE (CST) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
3 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/7/4/img/67474.jpg)
4 |
601205 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
5 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.JPG)
6 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
6 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/2/img/66122.jpg)
7 |
WASHER (34,8X16X2,2) ROUE ARRIERE "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -273099- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
8 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728- More informationQuantity required : 1 |
