Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

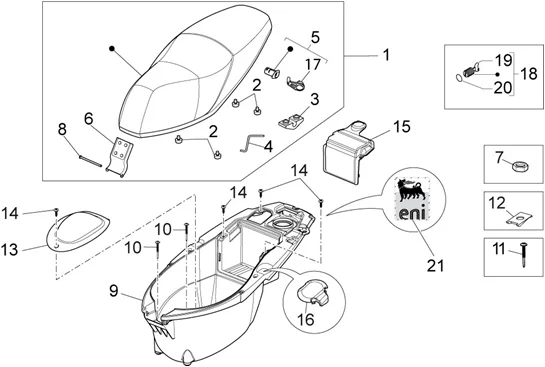

Chassis : 28.11 CARROSSERIE CENTRALE III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.11.PNG)
1 |
SADDLE- "PIAGGIO GENUINE PART" APRILIA 50-125 SPORT-CITY ONE 2008>2011 -672187- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
3 |
296743 - PONTET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/3/7/img/69737.jpg)
4 |
856462 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/0/img/68460.jpg)
5 |
SADDLE LOCK HARDWARE KIT "PIAGGIO GENUINE PART" 50 TYPHOON 2010>/APRILIA 50 SR MOTARD 2010> -672327- More informationQuantity required : 1 |
||||||
|
6 |
856465 - CHARNIERE SELLE More informationQuantity required : 1 |
||||||
|
7 |
269136 - ECROU More informationQuantity required : 1 |
||||||
|
8 |
856466 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
|
9 |
HELMET COMPARTMENT "PIAGGIO GENUINE PART" 50 TYPHOON 2010>/APRILIA 50 SR 2010>, SPORT-CITY 2008> -67219000XH1- More informationQuantity required : 1 |
||||||
|
9 |
89010200XH1 - COMPART.P-CASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/6/img/66036.jpg)
11 |
259372 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
12 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/5/img/69645.jpg)
13 |
INSPECTION COVER "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -85270000XH1- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
14 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 7 |
||||||
|
15 |
852990 - COUVERCLE BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/9/img/69649.jpg)
15 |
85299000XH1 - COUVERCLE BATTERIE, GRIS More informationQuantity required : 1 |
||||||
|
16 |
890103 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/3/8/img/69738.jpg)
17 |
SADDLE LOCK LEVER "PIAGGIO GENUINE PART" 50 TYPHOON 2010>/APRILIA 50 SR MOTARD 2010> -856463- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/9/2/img/69792.jpg)
18 |
LOCK KEY SET (2 KEYS) "PIAGGIO GENUINE PART" 50 TYPHOON 2010>/APRILIA 50 SR MOTARD 2010>, SPORT CITY-ONE -860193- More informationQuantity required : 1 |
||||||
|
19 |
860691 - CLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
20 |
LOCK GASKET RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298731- More informationQuantity required : 1 |
||||||
|
21 |
895839 - DECALCO More informationQuantity required : 2 |
