Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

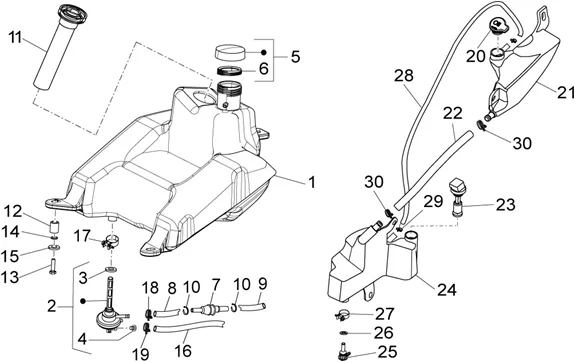

Chassis : 28.17 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.17.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/6/2/img/68362.jpg)
1 |
FUEL TANK "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR 2011> -657507- More informationQuantity required : 1 |
||||||
1 |
852601 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/7/3/img/68473.jpg)
2 |
FUEL TAP "PIAGGIO GENUINE PART" 50-125 FLY 2005>, LIBERTY 1998>, 50 TYPHOON 2010>, ZIP 2000>, 125 VESPA LX 2005>, VESPA GTS 2007>/APRILIA 50-125 SPORT-CITY 2008> -674594- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
3 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/8/img/65678.jpg)
4 |
090958 - TAMPON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/4/img/66044.jpg)
5 |
FUEL CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER/SCOOTER RANGE -259832- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
6 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" COMMON TO MAXISCOOTER RANGE -258160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/7/6/img/67776.jpg)
7 |
FUEL FILTER "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX, VESPA-S/GILERA 50 STALKER, SMT, RCR/APRILIA 50 SPORT-CITY, SCARABEO -624522- More informationQuantity required : 1 |
||||||
|
8 |
CM027916 - TUBE L=420 More informationQuantity required : 1 |
||||||
|
9 |
CM027920 - TUBE DEP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/3/img/72873.JPG)
10 |
CM001912 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/8/img/72948.jpg)
11 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" 50 TYPHOON 2010>, 250-300-400-500 BEVERLY/APRILIA 50 SR MOTARD 2010>, SPORT-CITY, 250-300-400-500 SCARABEO -CM025711- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/1/img/65961.jpg)
12 |
231027 - ENTRETOISE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
13 |
031092 - VIS More informationQuantity required : 3 |
||||||
|
14 |
268304 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
15 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/1/img/72901.jpg)
16 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -CM006116- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
17 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
18 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
19 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/1/0/1/img/178101.JPG)
20 |
BOUCHON RESERVOIR D'HUILE ORIGINE PIAGGIO 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>, SPORT CITY-ONE -1B006441- More informationQuantity required : 1 |
||||||
|
20 |
BOUCHON RESERVOIR D'HUILE ORIGINE PIAGGIO 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>, SPORT CITY-ONE -1B006441- More informationQuantity required : 1 |
||||||
|
21 |
OIL TANK (UPPER) "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>, SPORT-CITY -664427- More informationQuantity required : 1 |
||||||
|
21 |
860787 - RESERVOIR HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/9/img/72899.jpg)
22 |
OIL TANK HOSE "PIAGGIO GENUINE PARTS" 50 TYPHOON 2010>/APRILIA 50 SR MOTARD 2010> -CM003906 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/1/8/img/69818.jpg)
23 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" 50 TYPHOON 2010>/APRILIA 50 SR MOTARD 2010> -860788- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/6/3/img/70763.jpg)
24 |
OIL TANK (LOWER) "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>, SPORT-CITY -890096- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/5/img/67105.jpg)
25 |
OIL TANK UNION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -574362- More informationQuantity required : 1 |
||||||
|
26 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868- More informationQuantity required : 1 |
||||||
|
27 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888- More informationQuantity required : 1 |
||||||
|
28 |
1R000159 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
29 |
HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA /PIAGGIO /GILERA /VESPA -CM002902- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/0/img/72880.JPG)
30 |
CM001921 - COLLIER More informationQuantity required : 2 |
