Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

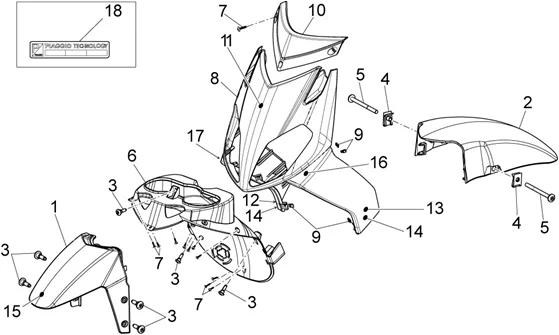

Chassis : 28.07 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.07.PNG)
1 |
853059 - GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50-125 SPORT CITY ONE 2008>2011 NOIR -8530590090- More informationQuantity required : 1 |
||||||
|
1 |
85305900R7 - GARDE-BOUE AVANT PEINT ROUGE More informationQuantity required : 1 |
||||||
|
1 |
85305900XB1 - GARDE-BOUE AVANT BLANC More informationQuantity required : 1 |
||||||
|
1 |
85305900XV4 - GARDE-BOUE AVANT VERT More informationQuantity required : 1 |
||||||
|
2 |
853060 - GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
2 |
85306000XH1 - GARDE-BOUE AV.GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
5 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836- More informationQuantity required : 2 |
||||||
|
6 |
89023900XH1 - LOGEMENT ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
7 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606- More informationQuantity required : 13 |
||||||
|
8 |
853069 - TABLIER AVANT More informationQuantity required : 1 |
||||||
|
8 |
8530690090 - TABLIER AVANT PEINT NOIR More informationQuantity required : 1 |
||||||
|
8 |
85306900R7 - TABLIER AV. PEINT ROUGE More informationQuantity required : 1 |
||||||
|
8 |
85306900XV4 - TABLIER AV VERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/6/8/1/img/39681.JPG)
8 |
85306900XB1 - TABLIER AV BLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
9 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 8 |
||||||
|
10 |
856436 - PROTECTION SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/1/1/img/69711.jpg)
10 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -85643600XH1- More informationQuantity required : 1 |
||||||
|
11 |
852489 - PLAQUETTE "APRILIA" 50X18 More informationQuantity required : 1 |
||||||
|
12 |
860697 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
896642 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
896647 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
896643 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
896648 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
860874 - DECALCO G. More informationQuantity required : 1 |
||||||
|
14 |
890349 - DECALCO More informationQuantity required : 2 |
||||||
|
14 |
896653 - DECALCO More informationQuantity required : 2 |
||||||
|
15 |
896639 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
896640 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
896641 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
672200 - MONOGRAMME CARTER More informationQuantity required : 1 |
