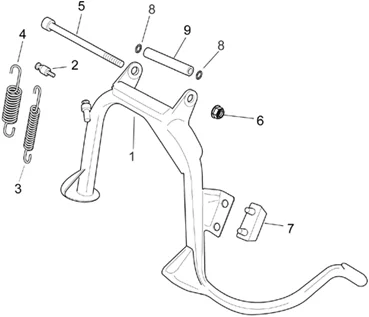

Vehicle Exploded View - APRILIA SPORT CITY 200 E2 2004-2006 APRILIA

Chassis : 28.02 BÉQUILLE
Béquille
Search
AP8146828 - CAVALLETTO CENTRALE

1
P2R reference P2R reference 50139
Maker reference Maker reference AP8146828

AP8146828 - CAVALLETTO CENTRALE

More information

Quantity required : 1
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -582850-

3
P2R reference P2R reference 67266
Maker reference Maker reference 582850

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -582850-

More information

Quantity required : 1
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -582851-

4
P2R reference P2R reference 67267
Maker reference Maker reference 582851

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -582851-

More information

Quantity required : 1
AP8150438 - VIS

5
P2R reference P2R reference 71886
Maker reference Maker reference AP8150438

AP8150438 - VIS

More information

Quantity required : 1
AP8152301 - ECROU AUTOBLOQU.

6
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

AP8152301 - ECROU AUTOBLOQU.

More information

Quantity required : 1
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" FOR MAXISCOOTERS RANGE -581560-

7
P2R reference P2R reference 67224
Maker reference Maker reference 581560

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" FOR MAXISCOOTERS RANGE -581560-

More information

Quantity required : 1
