Vehicle Exploded View - APRILIA SPORT CITY 200 E2 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

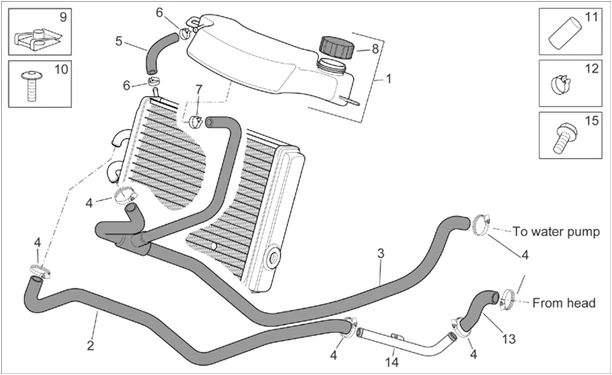

Chassis : 28.23 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/277/Sport_City_200_E2_2004-2006_28.23.PNG)
1 |
AP8178066 - VASO D'ESPANSIONE CON TAPPO More informationQuantity required : 1 |
||||||
|
2 |
AP8144642 - TUBO RADIATORE/RACCORDO More informationQuantity required : 1 |
||||||
|
3 |
AP8144643 - TUBO RADIATORE-POMPA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.JPG)
4 |
AP8101573 - COLLIER More informationQuantity required : 6 |
||||||
|
5 |
AP8144506 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
6 |
AP8102765 - COLLIER CLIC, BLANC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
7 |
AP8102349 - COLLIER CLIC, BLANC More informationQuantity required : 1 |
||||||
|
8 |
AP8570122 - TAPPO VASO D'ESPANSIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
10 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
||||||
|
11 |
AP8144298 - BOUCHON PURGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.JPG)
12 |
AP8120446 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
13 |
AP8144705 - TUBO TESTA/RACCORDO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
15 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
