Vehicle Exploded View - APRILIA SPORT CITY 200 E2 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

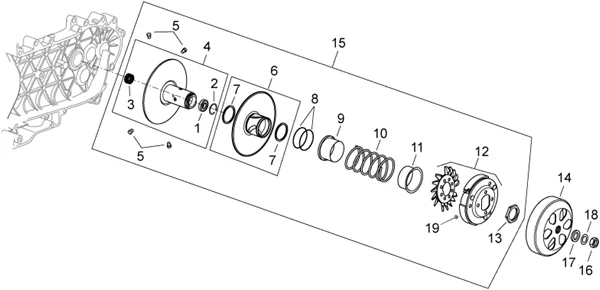

Moteur : 29.49 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/277/Sport_City_200_E2_2004-2006_29.49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/3/img/68523.jpg)
1 |
ROLLER BEARING 20X29X18 FOR TORQUE DRIVER "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -82518R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/9/img/66629.jpg)
2 |
483226 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/7/img/68677.jpg)
3 |
VARIATOR BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR 125-250-300 -82753R - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/7/img/68927.jpg)
4 |
FIXED DRIVEN HALF PULLEY "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125 CC -830580- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/2/9/img/156029.jpg)
4 |
FIXED DRIVEN HALF PULLEY "PIAGGIO GENUINE PART" PIAGGIO 250-300 MP3, BEVERLY, YOURBAN, X7, VESPA GTS, 250 X9, X8, X-EVO/GILERA 250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO -1A013202- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/2/img/68772.jpg)
5 |
FAN PULLEY GUIDE PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 CC -828717- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/3/img/70703.jpg)
6 |
ADJUSTABLE HALF PULLEY (WITH O'RING GASKET) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -878998- More informationQuantity required : 1 |
||||||
6 |
878649 - DEMI POULIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/2/img/66392.JPG)
7 |
431089 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/2/img/66382.jpg)
8 |
VARIATOR PULLEY GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -430585- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/4/img/66394.jpg)
9 |
CLUTCH SIDE CAP - INNER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -4310935- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/9/img/69079.JPG)
9 |
833674 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/4/2/img/70442.jpg)
10 |
VARIATOR THRUST SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 LEADER -872877- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/5/img/66765.jpg)
11 |
CLUTCH SIDE CAP - EXTERNAL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -487936- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/3/img/73333.jpg)
12 |
CLUTCH "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM161202- More informationQuantity required : 1 |
||||||
|
12 |
CM1612035 - GR.EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/0/9/img/69309.jpg)
14 |
CLUTCH DRUM "PIAGGIO GENUINE PART" 125-250 MP3, X8, X9-EVO, X-EVO/GILERA 125 NEXUS, RUNNER 4 STROKE/APRILIA 125-250 SPORT-CITY-ONE, ATLANTIC -8440494- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/8/img/73338.jpg)
15 |
DRIVEN PULLEY "PIAGGIO GENUINE PART" 125 MP3, X7, X8, X9, X-EVO, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (TILL 2010) -CM162403- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/1/3/img/73213.jpg)
15 |
DRIVEN PULLEY "PIAGGIO GENUINE PART" 200 X8, X9, BEVERLY, CARNABY, VESPA GT/GILERA 200 RUNNER/APRILIA 200 ATLANTIC, SPORT-CITY, SCARABEO -CM144133- More informationQuantity required : 1 |
