Vehicle Exploded View - APRILIA SPORT CITY 200 E2 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

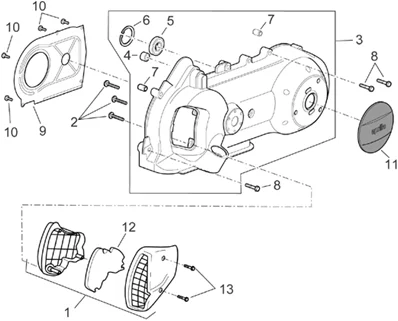

Moteur : 29.54 COUVERCLE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/277/Sport_City_200_E2_2004-2006_29.54.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/6/3/img/69263.jpg)
1 |
COOLING AIR INTAKE FOR TRANSMISSION COVER "PIAGGIO GENUINE PART" 200 LIBERTY, CARNABY, VESPA GT/APRILIA 200 SPORT-CITY -843188- More informationQuantity required : 1 |
||||||
3 |
8436725 - COUVERCLE TRANSMISS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
4 |
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
5 |
BEARING (15.35.11) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -4789853- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
8 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792- More informationQuantity required : 8 |
||||||
|
9 |
834266 - DIAPHRAGME POUR AIR CHAUD More informationQuantity required : 1 |
||||||
|
9 |
AIR DEFLECTOR 125CC -873682- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
10 |
430264 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/9/6/img/73296.jpg)
11 |
TRANSMISSION HOUSING COVER (ROUND - APRILIA MARKED) "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS 125 CC APRILIA -CM155103- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/3/img/69213.jpg)
12 |
AIR FILTER - FOR TRANSMISSION HOUSING AIR FLOW "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -842093- More informationQuantity required : 1 |
||||||
|
12 |
843190 - FILTRE A AIR More informationQuantity required : 1 |
