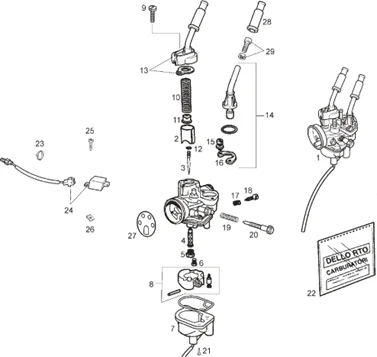

Vehicle Exploded View - DERBI SENDA R 50 Senda R X-Trem 50 2T E2 2010 DERBI

Moteur : 65.23 CARBURATEUR II
Carburateur II
Search
CM149906 - CARBURATEUR

1
P2R reference P2R reference 188669
Maker reference Maker reference CM149906

CM149906 - CARBURATEUR

More information

Quantity required : 0
00F03201211 - BOISSEAU

2
P2R reference P2R reference 63915
Maker reference Maker reference 00F03201211

00F03201211 - BOISSEAU

More information

Quantity required : 0
NEEDLE FOR CARB "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -CM107514-

3
P2R reference P2R reference 73101
Maker reference Maker reference CM107514

NEEDLE FOR CARB "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -CM107514-

More information

Quantity required : 0
CM106217 - MELANGEUR 211-GA

4
P2R reference P2R reference 73089
Maker reference Maker reference CM106217

CM106217 - MELANGEUR 211-GA

More information

Quantity required : 0
00H03215031 - GICLEUR PRINCIPAL 63

5
P2R reference P2R reference 188375
Maker reference Maker reference 00H03215031

00H03215031 - GICLEUR PRINCIPAL 63

More information

Quantity required : 0
CM102104 - GIGLEUR MIN 33

6
P2R reference P2R reference 73068
Maker reference Maker reference CM102104

CM102104 - GIGLEUR MIN 33

More information

Quantity required : 0
847519 - CUVE

7
P2R reference P2R reference 69522
Maker reference Maker reference 847519

847519 - CUVE

More information

Quantity required : 0
00H03202281 - R-FLOTTEUR.

8
P2R reference P2R reference 187722
Maker reference Maker reference 00H03202281

00H03202281 - R-FLOTTEUR.

More information

Quantity required : 0
00G03200061 - R-BOUL.SER.COUV.CHAMBRE MEL

9
P2R reference P2R reference 64071
Maker reference Maker reference 00G03200061

00G03200061 - R-BOUL.SER.COUV.CHAMBRE MEL

More information

Quantity required : 0
SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882

10
P2R reference P2R reference 66626
Maker reference Maker reference 482942

SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882

More information

Quantity required : 0
CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873-

11
P2R reference P2R reference 66205
Maker reference Maker reference 288873

CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873-

More information

Quantity required : 0
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 cc -288872-

12
P2R reference P2R reference 66204
Maker reference Maker reference 288872

NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872-

More information

Quantity required : 0
CARB COVER KIT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX 2006>2010 -00H03204231-

13
P2R reference P2R reference 64762
Maker reference Maker reference 00H03204231

CARB COVER KIT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX 2006>2010 -00H03204231-

More information

Quantity required : 0
CM146204 - KIT STARTER MANUAL

14
P2R reference P2R reference 73243
Maker reference Maker reference CM146204

CM146204 - KIT STARTER MANUAL

More information

Quantity required : 0
00G03200541 - R-BOULON SER.START.AUTOM.

15
P2R reference P2R reference 64072
Maker reference Maker reference 00G03200541

00G03200541 - R-BOULON SER.START.AUTOM.

More information

Quantity required : 0
CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551-

16
P2R reference P2R reference 64073
Maker reference Maker reference 00G03200551

CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551-

More information

Quantity required : 0
00G03200721 - R-RESSORT REG.AIR MIN.

17
P2R reference P2R reference 64074
Maker reference Maker reference 00G03200721

00G03200721 - R-RESSORT REG.AIR MIN.

More information

Quantity required : 0
00G03200731 - R-VIS REG.AIR MIN.

18
P2R reference P2R reference 64075
Maker reference Maker reference 00G03200731

00G03200731 - R-VIS REG.AIR MIN.

More information

Quantity required : 0
152608 - VIS

19
P2R reference P2R reference 65751
Maker reference Maker reference 152608

152608 - VIS

More information

Quantity required : 0
SCREW - FOR INJECTION BODY ADJUSTING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -828074-

20
P2R reference P2R reference 68725
Maker reference Maker reference 828074

SCREW - FOR INJECTION BODY ADJUSTING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -828074-

More information

Quantity required : 0
00G03201091 - R-BOUL.SERG.VASE ESSENC.

21
P2R reference P2R reference 64076
Maker reference Maker reference 00G03201091

00G03201091 - R-BOUL.SERG.VASE ESSENC.

More information

Quantity required : 0
DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -498409-

22
P2R reference P2R reference 66972
Maker reference Maker reference 498409

DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -498409-

More information

Quantity required : 0
00A00900531 - COLLIER

23
P2R reference P2R reference 63866
Maker reference Maker reference 00A00900531

00A00900531 - COLLIER

More information

Quantity required : 0
00H06001151 - KIT CHAUFFE CARBURATEUR

24
P2R reference P2R reference 65019
Maker reference Maker reference 00H06001151

00H06001151 - KIT CHAUFFE CARBURATEUR

More information

Quantity required : 0
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041-

25
P2R reference P2R reference 63923
Maker reference Maker reference 00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041-

More information

Quantity required : 0
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

26
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 0
AIR GAUGER "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 2 stroke -827892-

27
P2R reference P2R reference 68714
Maker reference Maker reference 827892

AIR GAUGER "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 2 STROKE -827892-

More information

Quantity required : 0
875551 - CAPUCHON

28
P2R reference P2R reference 70587
Maker reference Maker reference 875551

875551 - CAPUCHON

More information

Quantity required : 0
SCREW - FOR CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288868-

29
P2R reference P2R reference 66203
Maker reference Maker reference 288868

SCREW - FOR CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288868-

More information

Quantity required : 0
