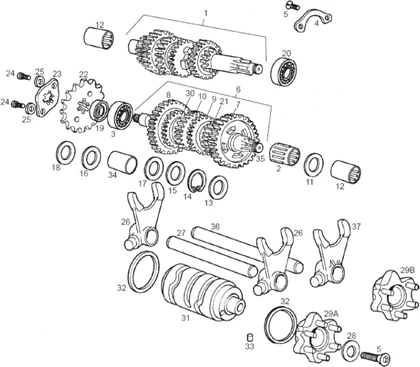

Vehicle Exploded View - DERBI SENDA R 50 Senda R X-Trem 50 2T E2 2010 DERBI

Moteur : 65.19 BOÎTE DE VITESSES
Boîte de vitesses
Search
GEARBOX SHAFT - PRIMARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2010>/APRILIA 50 SX, RX, RS 2010> -847027-

1
P2R reference P2R reference 69417
Maker reference Maker reference 847027

GEARBOX SHAFT - PRIMARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2010>/APRILIA 50 SX, RX, RS 2010> -847027-

More information

Quantity required : 0
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847544-

2
P2R reference P2R reference 69526
Maker reference Maker reference 847544

ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847544-

More information

Quantity required : 0
8470866 - BEARING

3
P2R reference P2R reference 205929
Maker reference Maker reference 8470866

8470866 - BEARING

More information

Quantity required : 0
BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847086-

3
P2R reference P2R reference 69458
Maker reference Maker reference 847086
Replaced by référence Replaced by référence 205929

BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847086-

More information

Quantity required : 0
PLATE FOR GEARBOX BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847021-

4
P2R reference P2R reference 69414
Maker reference Maker reference 847021

PLATE FOR GEARBOX BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847021-

More information

Quantity required : 0
SCREW - FOR GEARBOX "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A003116-

5
P2R reference P2R reference 127169
Maker reference Maker reference 1A003116

SCREW - FOR GEARBOX "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A003116-

More information

Quantity required : 0
GEARBOX SHAFT (SECONDARY-COMPLETE) "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX/GILERA 50 SMT, RCR - 847028 -

6
P2R reference P2R reference 69418
Maker reference Maker reference 847028

GEARBOX SHAFT (SECONDARY-COMPLETE) "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX/GILERA 50 SMT, RCR - 847028 -

More information

Quantity required : 0
1st WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847153-

7
P2R reference P2R reference 69468
Maker reference Maker reference 847153

1ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847153-

More information

Quantity required : 0
2 nd WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847157-

8
P2R reference P2R reference 69472
Maker reference Maker reference 847157

2 ND WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847157-

More information

Quantity required : 0
3 rd WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847155-

9
P2R reference P2R reference 69470
Maker reference Maker reference 847155

3 RD WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847155-

More information

Quantity required : 0
4 st WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847156-

10
P2R reference P2R reference 69471
Maker reference Maker reference 847156

4 ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847156-

More information

Quantity required : 0
SECONDARY SHAFT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847549-

11
P2R reference P2R reference 69531
Maker reference Maker reference 847549

SECONDARY SHAFT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847549-

More information

Quantity required : 0
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211-

12
P2R reference P2R reference 69485
Maker reference Maker reference 847211

ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211-

More information

Quantity required : 0
871708 - RONDELLE

13
P2R reference P2R reference 146216
Maker reference Maker reference 871708

871708 - RONDELLE

More information

Quantity required : 0
SAFETY WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847542-

14
P2R reference P2R reference 69525
Maker reference Maker reference 847542

SAFETY WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847542-

More information

Quantity required : 0
847548 - RONDELLE

15
P2R reference P2R reference 69530
Maker reference Maker reference 847548

847548 - RONDELLE

More information

Quantity required : 0
847541 - RONDELLE

16
P2R reference P2R reference 69524
Maker reference Maker reference 847541

847541 - RONDELLE

More information

Quantity required : 0
847546 - RONDELLE

17
P2R reference P2R reference 69528
Maker reference Maker reference 847546

847546 - RONDELLE

More information

Quantity required : 0
SECONDARY SHAFT WASHER (1,2X17X28) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS, TUONO -847545-

18
P2R reference P2R reference 69527
Maker reference Maker reference 847545

SECONDARY SHAFT WASHER (1,2X17X28) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS, TUONO -847545-

More information

Quantity required : 0
GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019-

19
P2R reference P2R reference 69412
Maker reference Maker reference 847019

GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019-

More information

Quantity required : 0
BEARING FOR GEARBOX PRIMARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -847209-

20
P2R reference P2R reference 69483
Maker reference Maker reference 847209

BEARING FOR GEARBOX PRIMARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -847209-

More information

Quantity required : 0
5 th WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847154-

21
P2R reference P2R reference 69469
Maker reference Maker reference 847154

5 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847154-

More information

Quantity required : 0
GEARBOX OUPUT SPROCKET "PIAGGIO GENUINE PART" 50 A BOITE GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 RS 2006>, RS4 2011>, RX 2006>, SX 2006> 11 TEETH -86177R-

22
P2R reference P2R reference 69922
Maker reference Maker reference 86177R

GEARBOX OUPUT SPROCKET "PIAGGIO GENUINE PART" 50 A BOITE GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 RS 2006>, RS4 2011>, RX 2006>, SX 2006> 11 TEETH -86177R-

More information

Quantity required : 0
00H02808371 - PIGNON SORTIE CHANGEMENT Z-12

22
P2R reference P2R reference 64739
Maker reference Maker reference 00H02808371

00H02808371 - PIGNON SORTIE CHANGEMENT Z-12

More information

Quantity required : 0
STEERING LOCK WASHER for OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA 50 RCR, SMT 1999>2005 -00H02810421-

23
P2R reference P2R reference 64741
Maker reference Maker reference 00H02810421

STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA 50 RCR, SMT 1999>2005 -00H02810421-

More information

Quantity required : 0
STEERING LOCK WASHER for OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA RCR, SMT 2006>/APRILIA 50 RS4 2011>, RS, RX, SX 2006> -00H02800421-

23
P2R reference P2R reference 64732
Maker reference Maker reference 00H02800421

STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA RCR, SMT 2006>/APRILIA 50 RS4 2011>, RS, RX, SX 2006> -00H02800421-

More information

Quantity required : 0
SCREW - (4,70x10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043-

24
P2R reference P2R reference 71910
Maker reference Maker reference AP8152043

SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043-

More information

Quantity required : 0
GEARBOX FORK- 2nd GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83073R-

26
P2R reference P2R reference 68935
Maker reference Maker reference 83073R

GEARBOX FORK- 2ND GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83073R-

More information

Quantity required : 0
847030 - AXE FOURCHE 2ERE

27
P2R reference P2R reference 69420
Maker reference Maker reference 847030

847030 - AXE FOURCHE 2ERE

More information

Quantity required : 0
GEARBOX SELECTOR WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847214-

28
P2R reference P2R reference 69487
Maker reference Maker reference 847214

GEARBOX SELECTOR WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847214-

More information

Quantity required : 0
SHIFT CAM PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -847038-

29
P2R reference P2R reference 69423
Maker reference Maker reference 847038

SHIFT CAM PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -847038-

More information

Quantity required : 0
863136 - AXE A CAMES

29
P2R reference P2R reference 69998
Maker reference Maker reference 863136

863136 - AXE A CAMES

More information

Quantity required : 0
6 th WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847158-

30
P2R reference P2R reference 69473
Maker reference Maker reference 847158

6 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847158-

More information

Quantity required : 0
1A011714 - TAMBOUR DESMOD.

31
P2R reference P2R reference 157350
Maker reference Maker reference 1A011714

1A011714 - TAMBOUR DESMOD.

More information

Quantity required : 0
GEAR SELECTOR WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847036-

32
P2R reference P2R reference 69422
Maker reference Maker reference 847036

GEAR SELECTOR WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847036-

More information

Quantity required : 0
ROLLER FOR GEARBOX CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847213-

33
P2R reference P2R reference 69486
Maker reference Maker reference 8472136

ROLLER FOR GEARBOX CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847213-

More information

Quantity required : 0
847547 - BAGUE

34
P2R reference P2R reference 69529
Maker reference Maker reference 847547

847547 - BAGUE

More information

Quantity required : 0
GEARBOX SHAFT - SECONDARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847159-

35
P2R reference P2R reference 69474
Maker reference Maker reference 847159

GEARBOX SHAFT - SECONDARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847159-

More information

Quantity required : 0
GEARBOX SHAFT FORK AXLE - for 1st GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -847029-

36
P2R reference P2R reference 69419
Maker reference Maker reference 847029

GEARBOX SHAFT FORK AXLE - FOR 1ST GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -847029-

More information

Quantity required : 0
GEARBOX FORK- 1st GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83072R-

37
P2R reference P2R reference 68934
Maker reference Maker reference 83072R

GEARBOX FORK- 1ST GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83072R-

More information

Quantity required : 0
