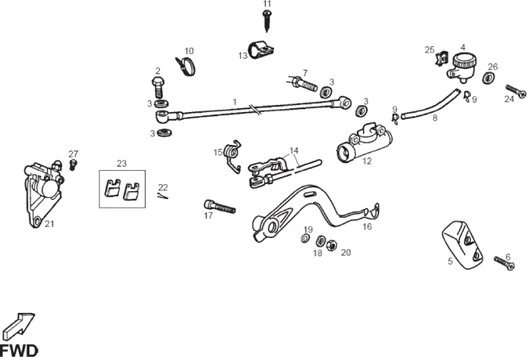

Vehicle Exploded View - DERBI SENDA R 50 Senda R X-Trem 50 2T E2 2010 DERBI

Chassis : 66.11 SYS.FREIN ARRIÈRE
Sys.frein arrière
Search
00H01109081 - TIGE DE FREIN

1
P2R reference P2R reference 187557
Maker reference Maker reference 00H01109081

00H01109081 - TIGE DE FREIN

More information

Quantity required : 0
862494 - R-TORNILLO RACORD HIDRAULICO

2
P2R reference P2R reference 69958
Maker reference Maker reference 862494

862494 - R-TORNILLO RACORD HIDRAULICO

More information

Quantity required : 0
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238-

3
P2R reference P2R reference 70303
Maker reference Maker reference 867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238-

More information

Quantity required : 0
REAR BRAKE FLUID TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01100201-

4
P2R reference P2R reference 63873
Maker reference Maker reference 00D01100201

REAR BRAKE FLUID TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01100201-

More information

Quantity required : 0
REAR BRAKE COMMAND GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01101731-

5
P2R reference P2R reference 64399
Maker reference Maker reference 00H01101731

REAR BRAKE COMMAND GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01101731-

More information

Quantity required : 0
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

6
P2R reference P2R reference 63992
Maker reference Maker reference 00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

More information

Quantity required : 0
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01001701-

7
P2R reference P2R reference 64372
Maker reference Maker reference 00H01001701

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01001701-

More information

Quantity required : 0
00H01101211 - FLEXIBLE DE FREIN ARRIERE

8
P2R reference P2R reference 64398
Maker reference Maker reference 00H01101211

00H01101211 - FLEXIBLE DE FREIN ARRIERE

More information

Quantity required : 0
HOSE CLAMP FOR BRAKE TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03700131-

9
P2R reference P2R reference 64809
Maker reference Maker reference 00H03700131

HOSE CLAMP FOR BRAKE TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03700131-

More information

Quantity required : 0
00F00900531 - COLLIER

10
P2R reference P2R reference 63899
Maker reference Maker reference 00F00900531

00F00900531 - COLLIER

More information

Quantity required : 0
REAR BRAKE CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -00H01106181-

12
P2R reference P2R reference 64412
Maker reference Maker reference 00H01106181

REAR BRAKE CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -00H01106181-

More information

Quantity required : 0
FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454-

13
P2R reference P2R reference 70054
Maker reference Maker reference 864454

FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454-

More information

Quantity required : 0
REAR BRAKE ROD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX (VENDU AVEC AXE DE FIXATION) -00H01103611-

14
P2R reference P2R reference 64404
Maker reference Maker reference 00H01103611

REAR BRAKE ROD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX (VENDU AVEC AXE DE FIXATION) -00H01103611-

More information

Quantity required : 0
RETURN SPRING FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -2B005020-

15
P2R reference P2R reference 151763
Maker reference Maker reference 2B005020

RETURN SPRING FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -2B005020-

More information

Quantity required : 0
REAR BRAKE PEDAL "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA SX, RX -86239R-

16
P2R reference P2R reference 69950
Maker reference Maker reference 86239R

REAR BRAKE PEDAL "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA SX, RX -86239R-

More information

Quantity required : 0
SCREW - FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01100172-

17
P2R reference P2R reference 64392
Maker reference Maker reference 00H01100172

SCREW - FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01100172-

More information

Quantity required : 0
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

18
P2R reference P2R reference 63787
Maker reference Maker reference 004020800015

ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

More information

Quantity required : 0
SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540-

19
P2R reference P2R reference 63655
Maker reference Maker reference 000055275405

SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540-

More information

Quantity required : 0
NUT - SAFETY NUT (8x125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

20
P2R reference P2R reference 63715
Maker reference Maker reference 000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

More information

Quantity required : 0
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H01104583-

21
P2R reference P2R reference 64406
Maker reference Maker reference 00H01104583

REAR BRAKE CALIPER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H01104583-

More information

Quantity required : 0
BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831-

22
P2R reference P2R reference 64467
Maker reference Maker reference 00H01301831

BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831-

More information

Quantity required : 0
BRAKE PADS - "PIAGGIO GENUINE PART" GILERA 50 SMT FRONT+AR, RCR FRONT+REAR /APRILIA 50 RS REAR, RX REAR, SX REAR (AJP) -00G04700141-

23
P2R reference P2R reference 64125
Maker reference Maker reference 00G04700141

BRAKE PADS - "PIAGGIO GENUINE PART" GILERA 50 SMT FRONT+AR, RCR FRONT+REAR /APRILIA 50 RS REAR, RX REAR, SX REAR (AJP) -00G04700141-

More information

Quantity required : 0
00012151500 - VIS A TETE RONDE A FENTES C

24
P2R reference P2R reference 63702
Maker reference Maker reference 000121515005

00012151500 - VIS A TETE RONDE A FENTES C

More information

Quantity required : 0
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

25
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 0
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181-

26
P2R reference P2R reference 69480
Maker reference Maker reference 847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181-

More information

Quantity required : 0
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123-

27
P2R reference P2R reference 70045
Maker reference Maker reference 864123

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123-

More information

Quantity required : 0
