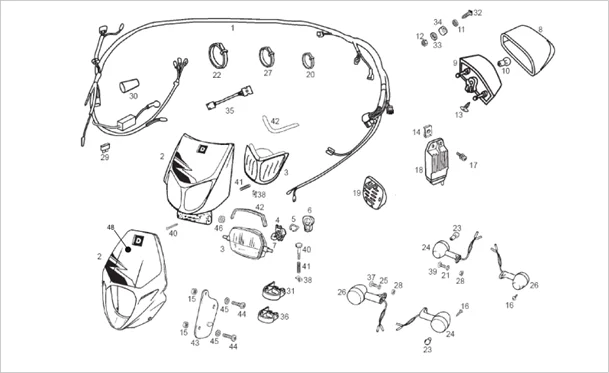

Vehicle Exploded View - DERBI SENDA R 50 Senda R X-Trem 50 2T E2 2010 DERBI

Chassis : 66.08 FEUX
Feux
Search
CABLE BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01046301-

1
P2R reference P2R reference 64390
Maker reference Maker reference 00H01046301

CABLE BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01046301-

More information

Quantity required : 0
86571900WN35 - CACHE

2
P2R reference P2R reference 188694
Maker reference Maker reference 86571900WN35

86571900WN35 - CACHE

More information

Quantity required : 0
00H01013011 - OPTIQUE COMPLETE

3
P2R reference P2R reference 187545
Maker reference Maker reference 00H01013011

00H01013011 - OPTIQUE COMPLETE

More information

Quantity required : 0
BULB HOLDER - FOR HEADLAMP - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710110-

4
P2R reference P2R reference 63641
Maker reference Maker reference 000037101105

BULB HOLDER - FOR HEADLAMP - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710110-

More information

Quantity required : 0
SPRING FOR BULB HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710120-

5
P2R reference P2R reference 63642
Maker reference Maker reference 000037101205

SPRING FOR BULB HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710120-

More information

Quantity required : 0
HEAD LAMP BULB PROTECTION "PIAGGIO GENUINE PART" 50 SMT, RCR/APRILIA 50 RX, SX -00H05703141-

6
P2R reference P2R reference 65003
Maker reference Maker reference 00H05703141

HEAD LAMP BULB PROTECTION "PIAGGIO GENUINE PART" 50 SMT, RCR/APRILIA 50 RX, SX -00H05703141-

More information

Quantity required : 0
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528-

7
P2R reference P2R reference 65942
Maker reference Maker reference 219528

LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528-

More information

Quantity required : 0
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2009 -00H01006321-

8
P2R reference P2R reference 64383
Maker reference Maker reference 00H01006321

TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2009 -00H01006321-

More information

Quantity required : 0
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2009 -00H01006321-

9
P2R reference P2R reference 64383
Maker reference Maker reference 00H01006321

TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2009 -00H01006321-

More information

Quantity required : 0
BULB 12V 21/5W "PIAGGIO GENUINE PART" COMMON TO THE RANGE -00H01000371-

10
P2R reference P2R reference 64366
Maker reference Maker reference 00H01000371

BULB 12V 21/5W "PIAGGIO GENUINE PART" COMMON TO THE RANGE -00H01000371-

More information

Quantity required : 0
00H03800722 - RONDELLE

11
P2R reference P2R reference 64840
Maker reference Maker reference 00H03800722

00H03800722 - RONDELLE

More information

Quantity required : 0
SCREW - FOR TAIL LAMP LENS "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2006>2010 -00G01001571-

13
P2R reference P2R reference 63957
Maker reference Maker reference 00G01001571

SCREW - FOR TAIL LAMP LENS "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2006>2010 -00G01001571-

More information

Quantity required : 0
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

14
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 0
00026005000 - ECROU HEXAG.A/BRIDE 5M80 D6923

15
P2R reference P2R reference 63717
Maker reference Maker reference 000260050005

00026005000 - ECROU HEXAG.A/BRIDE 5M80 D6923

More information

Quantity required : 0
00011021300 - VIS

16
P2R reference P2R reference 63675
Maker reference Maker reference 000110213005

00011021300 - VIS

More information

Quantity required : 0
00D05910081 - VIS

17
P2R reference P2R reference 63895
Maker reference Maker reference 00D05910081

00D05910081 - VIS

More information

Quantity required : 0
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2015/APRILIA 50 RS 2006>2016, RX, SX 2006>2016 (RED VERSION) -898891-

18
P2R reference P2R reference 70888
Maker reference Maker reference 898891

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2015/APRILIA 50 RS 2006>2016, RX, SX 2006>2016 (RED VERSION) -898891-

More information

Quantity required : 0
HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311-

19
P2R reference P2R reference 64382
Maker reference Maker reference 00H01005311

HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311-

More information

Quantity required : 0
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

20
P2R reference P2R reference 63869
Maker reference Maker reference 00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

More information

Quantity required : 0
00031106000 - RONDELLE PLATE D6

21
P2R reference P2R reference 63726
Maker reference Maker reference 000311060005

00031106000 - RONDELLE PLATE D6

More information

Quantity required : 0
00F00900531 - COLLIER

22
P2R reference P2R reference 63899
Maker reference Maker reference 00F00900531

00F00900531 - COLLIER

More information

Quantity required : 0
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332-

23
P2R reference P2R reference 67298
Maker reference Maker reference 584332

LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332-

More information

Quantity required : 0
00H01703301 - GLIGNOTEURS AR. DROITE

24
P2R reference P2R reference 188429
Maker reference Maker reference 00H01703301

00H01703301 - GLIGNOTEURS AR. DROITE

More information

Quantity required : 0
00031106000 - RONDELLE PLATE D6

25
P2R reference P2R reference 63726
Maker reference Maker reference 000311060005

00031106000 - RONDELLE PLATE D6

More information

Quantity required : 0
FLASHER-REAR-LEFT/FRONT- RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2009 -00H01703391--

26
P2R reference P2R reference 64595
Maker reference Maker reference 00H01703391

FLASHER-REAR-LEFT/FRONT- RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2009 -00H01703391--

More information

Quantity required : 0
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

27
P2R reference P2R reference 63869
Maker reference Maker reference 00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

More information

Quantity required : 0
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

28
P2R reference P2R reference 63590
Maker reference Maker reference 000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

More information

Quantity required : 0
00H01001911 - FUSIBLE

29
P2R reference P2R reference 64373
Maker reference Maker reference 00H01001911

00H01001911 - FUSIBLE

More information

Quantity required : 0
PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961-

30
P2R reference P2R reference 64684
Maker reference Maker reference 00H02300961

PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961-

More information

Quantity required : 0
SPACER- FOR HEAD LIGHT COVER MOUNTING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H04608841-

31
P2R reference P2R reference 64925
Maker reference Maker reference 00H04608841

SPACER- FOR HEAD LIGHT COVER MOUNTING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H04608841-

More information

Quantity required : 0
HOSE CLAMP "PIAGGIO GENUINE PART" GILERA SMT-RCR 1998>2005 - 00H04607841 -

31
P2R reference P2R reference 64924
Maker reference Maker reference 00H04607841

HOSE CLAMP "PIAGGIO GENUINE PART" GILERA SMT-RCR 1998>2005 - 00H04607841 -

More information

Quantity required : 0
00004053500 - VIS A TETE ALLEN 5M80X50

32
P2R reference P2R reference 63644
Maker reference Maker reference 000040535005

00004053500 - VIS A TETE ALLEN 5M80X50

More information

Quantity required : 0
SPACER- FOR STOP LIGHT SWITCH/REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT/APRILIA 50 RS -00H01002821-

33
P2R reference P2R reference 64376
Maker reference Maker reference 00H01002821

SPACER- FOR STOP LIGHT SWITCH/REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT/APRILIA 50 RS -00H01002821-

More information

Quantity required : 0
SILENTBLOC FOR TAIL LIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H06800461-

34
P2R reference P2R reference 65051
Maker reference Maker reference 00H06800461

SILENTBLOC FOR TAIL LIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H06800461-

More information

Quantity required : 0
DASHBOARD TIMER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H05700481-

35
P2R reference P2R reference 64997
Maker reference Maker reference 00H05700481

DASHBOARD TIMER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H05700481-

More information

Quantity required : 0
HOSE CLAMP "PIAGGIO GENUINE PART" GILERA SMT-RCR 1998>2005 - 00H04607841 -

36
P2R reference P2R reference 64924
Maker reference Maker reference 00H04607841

HOSE CLAMP "PIAGGIO GENUINE PART" GILERA SMT-RCR 1998>2005 - 00H04607841 -

More information

Quantity required : 0
00008063000 - VIS

37
P2R reference P2R reference 63666
Maker reference Maker reference 000080630005

00008063000 - VIS

More information

Quantity required : 0
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

38
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 0
00008061500 - VIS A TETE RONDE 6M100X16

39
P2R reference P2R reference 63664
Maker reference Maker reference 000080615005

00008061500 - VIS A TETE RONDE 6M100X16

More information

Quantity required : 0
00012053000 - VIS M4X50

40
P2R reference P2R reference 63694
Maker reference Maker reference 000120530005

00012053000 - VIS M4X50

More information

Quantity required : 0
HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H02304501-

41
P2R reference P2R reference 64691
Maker reference Maker reference 00H02304501

HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H02304501-

More information

Quantity required : 0
00H05700101 - BUTEE PHARE

42
P2R reference P2R reference 64994
Maker reference Maker reference 00H05700101

00H05700101 - BUTEE PHARE

More information

Quantity required : 0
FORK HEAD SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01502741-

43
P2R reference P2R reference 64541
Maker reference Maker reference 00H01502741

FORK HEAD SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01502741-

More information

Quantity required : 0
00012051200 - VIS T.RONDE CROIX 5M80X12

44
P2R reference P2R reference 63693
Maker reference Maker reference 000120512005

00012051200 - VIS T.RONDE CROIX 5M80X12

More information

Quantity required : 0
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

45
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

More information

Quantity required : 0
00H05701061 - CAOUTCHOUC PASSE-CABLE

46
P2R reference P2R reference 64999
Maker reference Maker reference 00H05701061

00H05701061 - CAOUTCHOUC PASSE-CABLE

More information

Quantity required : 0
864587 - PROTECTOR GUIA CABLES MUL125

47
P2R reference P2R reference 70061
Maker reference Maker reference 864587

864587 - PROTECTOR GUIA CABLES MUL125

More information

Quantity required : 0
8657200001 - DECALCO

48
P2R reference P2R reference 188697
Maker reference Maker reference 8657200001

8657200001 - DECALCO

More information

Quantity required : 0

All the exploded views of this vehicle

Filter :
Or choose :
