Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 Baja 4T E2 2006 - Baja E3 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

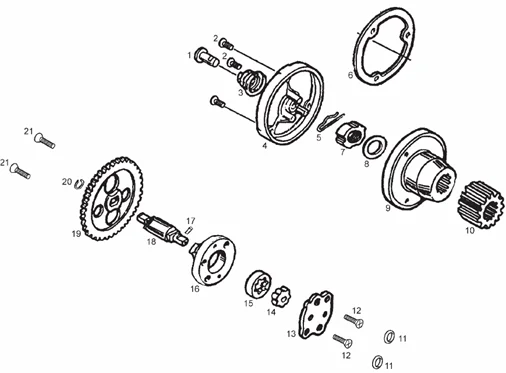

Tables : 23B POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1166/Senda_R_125_Baja_4T_E2_2006_-_Baja_E3_2007-2009_23B.png)
1 |
862766 - PIVOT More informationQuantity required : 1 |
||||||
|
3 |
862785 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
862842 - COUVERCLE More informationQuantity required : 1 |
||||||
|
5 |
862792 - GOUPILLE More informationQuantity required : 1 |
||||||
|
6 |
862776 - JOINT More informationQuantity required : 1 |
||||||
|
8 |
862683 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
862814 - PIGNON More informationQuantity required : 1 |
||||||
|
11 |
862680 - BAGUE More informationQuantity required : 1 |
||||||
|
12 |
862853 - VIS More informationQuantity required : 1 |
||||||
|
13 |
862745 - COUVERCLE More informationQuantity required : 1 |
||||||
|
14 |
862833 - ROTOR EXTERIEUR More informationQuantity required : 1 |
||||||
|
15 |
862832 - ROTOR INTERIEUR More informationQuantity required : 1 |
||||||
|
16 |
862838 - COUVERCLE More informationQuantity required : 1 |
||||||
|
21 |
862868 - VIS More informationQuantity required : 1 |
