Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 Baja 4T E2 2006 - Baja E3 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

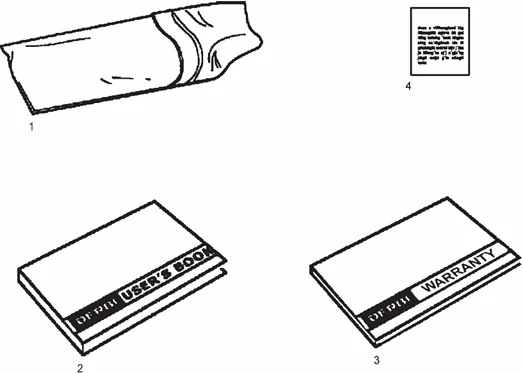

Tables : 14 OUTILLAGE SPECIAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1166/Senda_R_125_Baja_4T_E2_2006_-_Baja_E3_2007-2009_14.png)
Search
1 |
TROUSSE A OUTILS |
||||||
|
2 |
Livret d’util.et entret. |
||||||
|
3 |
Carnet de garantie |
||||||
|
4 |
00H04651141 - ADHESIF More informationQuantity required : 1 |
