Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 Baja 4T E2 2006 - Baja E3 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

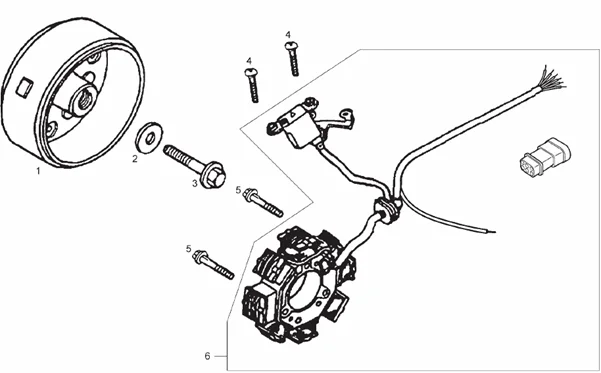

Tables : 24 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1166/Senda_R_125_Baja_4T_E2_2006_-_Baja_E3_2007-2009_24.png)
Search
1 |
862831 - ROTOR More informationQuantity required : 1 |
||||||
|
2 |
862694 - RONDELLE More informationQuantity required : 1 |
||||||
|
3 |
862875 - VIS More informationQuantity required : 1 |
||||||
|
4 |
862852 - VIS More informationQuantity required : 1 |
||||||
|
5 |
862867 - VIS More informationQuantity required : 1 |
||||||
|
6 |
862837 - STATOR COMPLET More informationQuantity required : 1 |
