Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 Baja 4T E2 2006 - Baja E3 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

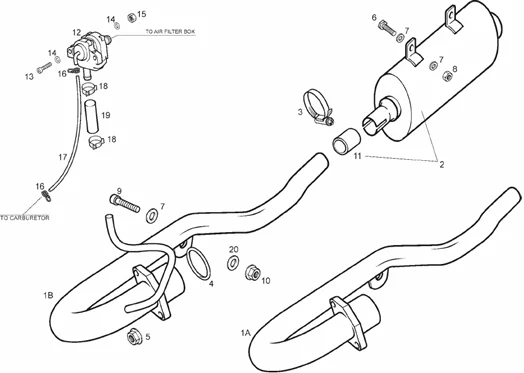

Tables : 13A TUYAU D’ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1166/Senda_R_125_Baja_4T_E2_2006_-_Baja_E3_2007-2009_13A.png)
1 |
00H03446601 - SCTO.TUBO ESCAP.C/PROT.125CC Z More informationQuantity required : 1 |
||||||
|
1 |
863880 - SCTO.TUBO ESCAPE CROSS CITY 125 More informationQuantity required : 1 |
||||||
|
2 |
00H03438411 - SCTO.SORDINA 125CC 4T (ZONG) More informationQuantity required : 1 |
||||||
|
2 |
865120 - SCTO.SORDINA SD BJ125 08 More informationQuantity required : 1 |
||||||
|
2 |
863828 - SCTO.SORDINA SD 125 4T E3 (Z) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/3/img/64793.jpg)
3 |
SILENCER CLIP"PIAGGIO GENUINE PART" APRILIA 125 RS 2011> -00H03405061 More informationQuantity required : 1 |
||||||
|
4 |
967299 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/0/img/71830.jpg)
6 |
AP8150170 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
7 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001 More informationQuantity required : 1 |
||||||
|
8 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
9 |
AP8150169 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/0/img/63720.jpg)
10 |
00026008001 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/5/img/64795.jpg)
11 |
EXHAUST GASKET "PIAGGIO GENUINE PART" APRILIA 125 RS 2011>, SX 2018>, RX 2018> 00H03406321 More informationQuantity required : 1 |
||||||
|
12 |
840561 - SOUPAPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
13 |
AP8150165 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
14 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
15 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060 More informationQuantity required : 1 |
||||||
|
16 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
|
17 |
863894 - TUBO DEPRES.VALV.SAS CR.CITY More informationQuantity required : 1 |
||||||
|
18 |
00H03801461 - COLLIER More informationQuantity required : 1 |
||||||
|
19 |
864417 - TUBO CAJA SAS ESCAPE CR.CITY 125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/4/6/img/63946.jpg)
20 |
00G00803101 - RONDELLE More informationQuantity required : 1 |
