Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

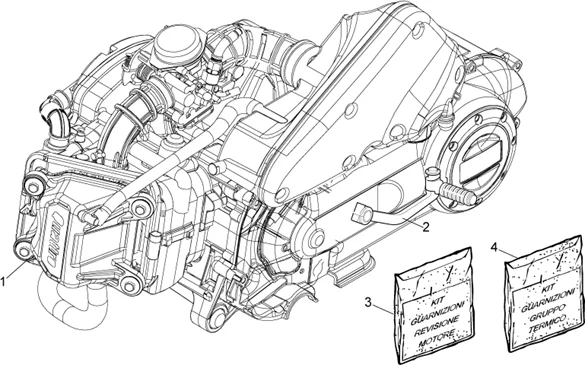

Moteur : 29.20 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/593/Scarabeo_50_4T_4V_2014_29.20.PNG)
Search
1 |
"PIAGGIO GENUINE ENGINE" 50 SCARABEO 4 STROKE 4 VALVES -CM153425- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/8/img/66168.jpg)
2 |
KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214- More informationQuantity required : 1 |
||||||
|
3 |
497556 - SET DE JOINT- BOURRAGE More informationQuantity required : 1 |
||||||
|
4 |
497555 - SET DE JOINT- BOURRAGE More informationQuantity required : 1 |
