Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

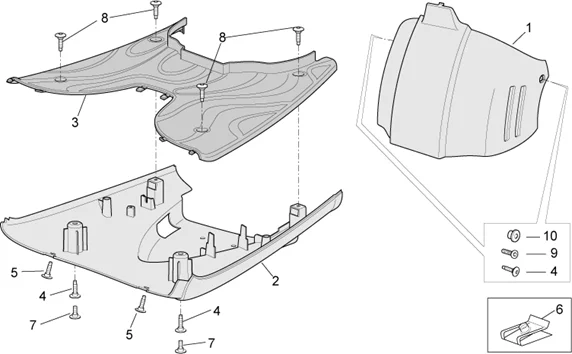

Chassis : 28.09 CARROSSERIE PARTIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/593/Scarabeo_50_4T_4V_2014_28.09.PNG)
1 |
63597400000DO - COUVERCLE INSP., BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
63597400000M9 - COUVERCLE INSP. More informationQuantity required : 1 |
|||||||||
|
1 |
63597400000NN - COUVERCLE INSP., NOIR More informationQuantity required : 1 |
|||||||||
|
1 |
63597400000XB6 - COUVERCLE INSPECT.P. BLANC More informationQuantity required : 1 |
|||||||||
|
2 |
89391200XEQ - PROTECTION More informationQuantity required : 1 |
|||||||||
|
3 |
672157 - PLANCHER REPOSE-PIEDS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
5 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
7 |
AP8150270 - VIS More informationQuantity required : 2 |
|||||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
9 |
AP8224470 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/9/img/72319.jpg)
10 |
AP8221349 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
|||||||||
