Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

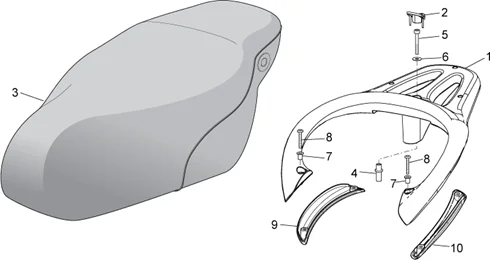

Chassis : 28.10 SELLE-PORTE BAG
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/593/Scarabeo_50_4T_4V_2014_28.10.PNG)
1 |
5A000128000EU - POIGNEE GRISE More informationQuantity required : 1 |
||||||
|
2 |
5A000125000EU - BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
2B000324000C1 - SELLE More informationQuantity required : 1 |
||||||
|
3 |
2B000324000C2 - SELLE More informationQuantity required : 1 |
||||||
|
4 |
AP8225371 - BOUS CENTR PORTE-BAG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
5 |
AP8150202 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
6 |
AP8150015 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
AP8121790 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
8 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
||||||
|
9 |
5A000126 - REAR HANDLE GRIP RIGHT - 4T More informationQuantity required : 1 |
||||||
|
10 |
5A000127 - REAR HANDLE GRIP LEFT - 4T More informationQuantity required : 1 |
